1A Gold Plating 3-10u Brass Pogo Pin Spring Loaded Height 2.5mm Pin Contact Dip

    Buy cheap 1A Gold Plating 3-10u Brass Pogo Pin Spring Loaded Height 2.5mm Pin Contact Dip from wholesalers

    Buy cheap 1A Gold Plating 3-10u Brass Pogo Pin Spring Loaded Height 2.5mm Pin Contact Dip from wholesalers
    • Buy cheap 1A Gold Plating 3-10u Brass Pogo Pin Spring Loaded Height 2.5mm Pin Contact Dip from wholesalers
    • Buy cheap 1A Gold Plating 3-10u Brass Pogo Pin Spring Loaded Height 2.5mm Pin Contact Dip from wholesalers
    • Buy cheap 1A Gold Plating 3-10u Brass Pogo Pin Spring Loaded Height 2.5mm Pin Contact Dip from wholesalers
    • Buy cheap 1A Gold Plating 3-10u Brass Pogo Pin Spring Loaded Height 2.5mm Pin Contact Dip from wholesalers

    1A Gold Plating 3-10u Brass Pogo Pin Spring Loaded Height 2.5mm Pin Contact Dip

    Ask Lasest Price
    Brand Name : HONSHI
    Model Number : A20025XXDVX01
    Price : 0.05-1.25 usd
    Certification : ISO9001/ISO14001/CE/ROHS/REACH
    Payment Terms : T/T,Paypal
    Supply Ability : 990000PCS
    Delivery Time : 15~25Day
    • Product Details
    • Company Profile

    1A Gold Plating 3-10u Brass Pogo Pin Spring Loaded Height 2.5mm Pin Contact Dip

    1A Rated Voltage Gold Plating 3-10u Custom Precision Brass Spring Loaded Height 2.5mm Pin Contact Dip Pin Pogo for Performance


    Specific material electrical parameters
    Electrical Performance:Mechanical Performance:
    Rated Current:1.5AMPSpring force:100g±20g or Customized
    Contact Resistance:50mΩ MaxWork Stroke:Customized
    Rated Voltage:DC 12VMaximum Working stroke:Customized
    Operation Temperature:-40°c to +105°cMechanical Life100,000 cycles
    Resistance To Solder Heat:260℃±5℃ 20s±2sApplication:PCB,AV equipment,medical equipment,military communication,aerospace,Phone watch, electronic
    All materials comply with"ROHS" environmental protection standards
    Customized POGO PIN Warmly welcome W/LOW MOQ.


    Arawing:A20XXXXXSVX01.pdf

    Pogo Pin Connector


    Pogo Pin is a precision connector used in mobile phones and other electronic products.

    It is widely used in various electronic products and plays a role in signal transmission connection.

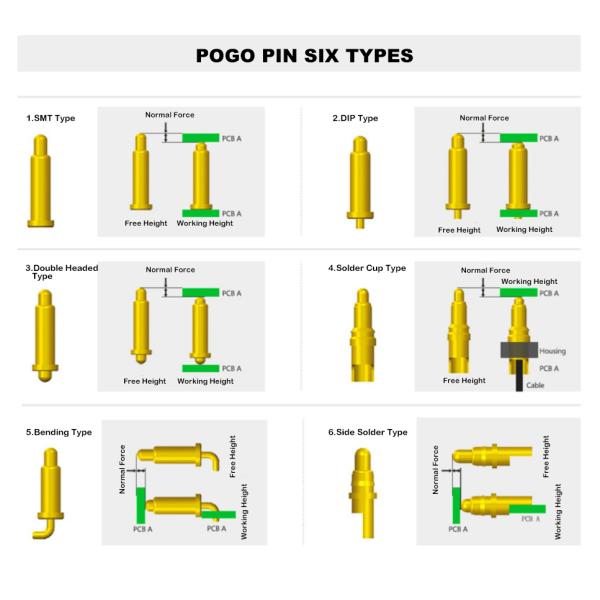

    Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type,

    side hole type, etc.

    The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc.

    Plating selection: regular gold plating, nickel plating, etc.


    The main functions of Pogo Pin include:

    1. Charging: Pogo Pin can be used for the charging interface of the device to realize fast and stable charging function.

    2. Mechanical fixation: In addition to electrical connection, Pogo Pin also has the function of fixing and supporting to ensure the stability of the connection.

    3. RF, video, antenna transmission: Pogo Pin can support the transmission of high-frequency signals, including RF signals, video signals and antenna signals.

    4. Data transmission: As a precision electronic hardware material, Pogo Pin is also commonly used in connection with data transmission to support high-speed data transmission.


    Service idea:


    1. Committed to providing customers with customized, small batch, multi variety, one-stop services.
    2. Quick response and effective communication, refined service timely delivery.
    3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

    Management Concept
    Responsibility Innovation Integrity Win-Win;

    Team Culture
    Thanksgiving Valute Respects Team efforts;

    Service Purpose
    Quality fisrt Customer Satisfaction Professinal Improving;

    Sustainable Manner
    HONSHI grow in a sustainable manner,to support our valued customers with flexibly customized interconnect solutions.
