    SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)

    Ask Lasest Price
    Brand Name : SIPU
    Model Number : SMA-JB2G/SMA-JB2G-SFT-50-2-1-L
    Certification : ISO9001, RoHS, CE
    Price : Provide a quotation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000pcs/year
    Delivery Time : 6-8work days
    • Product Details
    • Company Profile

    SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)

    SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)

    Product Overview

    RF coaxial cables are critical components for high-efficiency, reliable transmission of electromagnetic signals. They feature two concentric conductors—a central inner conductor and an outer shield—designed to minimize signal loss and provide strong protection against external electromagnetic interference (EMI). Thanks to their excellent electrical and mechanical properties, these cables are widely used in local area networks (LANs), communication systems, and various RF applications.

    Cable Classification

    Depending on flexibility, RF coaxial cables are commonly categorized into:

    Flexible cables

    Semi-flexible cables

    Semi-rigid (semi-steel) cables

    Each cable typically consists of:

    Inner conductor – Transmits the RF signal

    Dielectric insulation layer – Electrically isolates the inner and outer conductors

    Outer conductor (shield) – Prevents EMI and signal leakage

    Application Areas

    Military electronics, aerospace systems, communication terminals, RFID, mobile communications, and precision test instrumentation.

    Product Features

    This product is compatible with SFT-50-2-1 semi-rigid RF coaxial cable. It offers:

    Low signal loss and excellent phase stability

    Superior shielding effectiveness

    Mechanical durability and shape retention for fixed routing

    Standard cable length: 150 mm

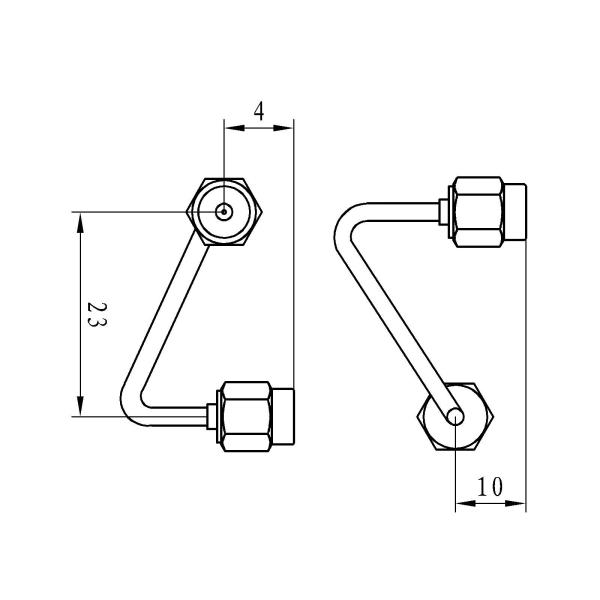

    Product Specifications and Testing Standards

    测试图(L=59.8mm)

    Important Technical Parameters


    Electrical property


    Temperature range

    -65~+125℃

    Characteristic impedance


    50Ω

    Frequency range

    DC-610MHz

    Dielectric withstanding voltage


    1000V

    VSWR

    ≤1.3

    Insulation resistance


    ≥5000MΩ

    Insertion loss

    ≤0.5dB

    Phase consistency


    ≤±3°

    Mechanical property

    Insertion loss consistency


    ≤±0.1dB

    Durability

    500times

    Product Image Gallery
