    N-Type Male RF Connector for RG142B/U Coaxial Cable – Threaded

    Ask Lasest Price
    Brand Name : SIPU
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Model Number : N-J5A-11
    Certification : ISO9001, RoHS, CE
    Price : Discuss
    Supply Ability : 1000000pcs
    Delivery Time : 5-8work days
    • Product Details
    • Company Profile

    N-Type Male RF Connector for RG142B/U Coaxial Cable – Threaded

    N-Type Male RF Connector for RG142B/U Coaxial Cable – Threaded

    Product Overview

    The N series is a medium-power RF connector with a threaded coupling mechanism, developed in accordance with MIL-C-39012 and IEC 60169-16 standards. It offers strong vibration resistance, high reliability, and excellent mechanical and electrical performance. The connector is compatible with international equivalents for seamless interchangeability.

    Applications
    Ideal for use in:

    Communication systems

    Radio equipment

    Ground-based transmission systems

    Product Features

    Detachable screw sleeve design

    Inner and outer conductor welding

    Mates with RG142B/U RF coaxial cable

    Wide frequency bandwidth

    Strong mechanical durability and electrical stability

    Resistant to shock and vibration

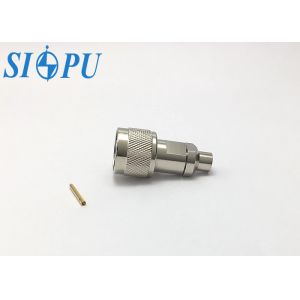

    Product Appearance

    Important Technical Parameters



    Electrical property


    Temperature range-65~+125℃

    Characteristic impedance


    50ΩFrequency rangeDC-11GHz

    Dielectric withstanding voltage


    1500VVSWR≤1.25

    Insulation resistance


    ≥5000MΩInsertion loss≤0.06√F(GHz)dB

    Contact resistance

    Center conductor≤1.5mΩMechanical property
    Outer conductor≤0.2mΩDurability500 times

    Materials and Surface Treatment



    Center conductor


    Brass, gold platingInsulating mediumPTFE

    Outer conductor


    Brass, nickel plating//
