RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)

    Buy cheap RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK) from wholesalers

    Buy cheap RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK) from wholesalers
    • Buy cheap RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK) from wholesalers
    • Buy cheap RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK) from wholesalers
    • Buy cheap RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK) from wholesalers

    RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)

    Ask Lasest Price
    Brand Name : SIPU
    Payment Terms : L/C,T/T,Western Union
    Model Number : N/SMA-JK
    Certification : ISO9001, RoHS, CE
    Price : Discuss
    Delivery Time : 6-8weekd
    Supply Ability : 120000pcs/year
    • Product Details
    • Company Profile

    RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)

    RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)

    Product Overview

    RF coaxial adapters of various specifications ensure proper interconnection between different connector series or within the same series. They serve as essential bridging components in RF systems.

    Application Scope:
    Widely used for system conversion and interconnection, particularly in test instruments, test cables, and RF modules.

    Product Features:

    Interface: N Female to SMA Male

    Strong environmental resistance for stable operation in demanding conditions

    High reliability and low insertion loss

    Excellent electrical performance with consistent impedance matching

    Suitable for laboratory testing, communication equipment, and RF setups

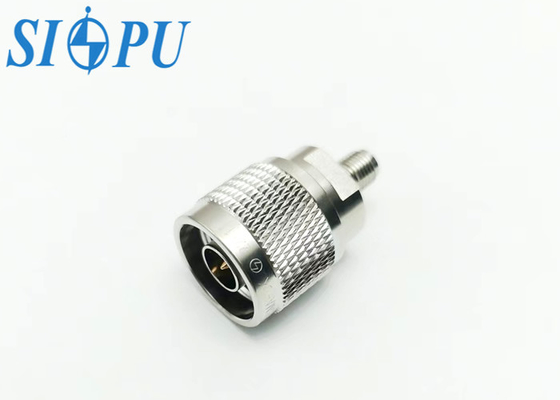

    Product Appearance


    Important Technical Parameter



    Electrical property


    Temperature range-65~+125℃

    Characteristic impedance


    50ΩFrequency rangeDC-11GHz

    Dielectric withstanding voltage


    1000VVSWR≤1.3

    Insulation resistance


    ≥5000MΩInsertion loss

    ≤0.06√F(GHz)dB


    Contact resistance


    Center conductor≤3.0mΩMechanical property
    Outer conductor≤2.0mΩDurability500times

    Materials and Surface Treatment


    Center conductor


    Beryllium bronze, gold platingInsulating mediumPTFE

    Outer conductor


    Brass, nickel platingSealing ringSilicon rubber

    Product Image Gallery
