    SMP Female RF Coaxial Connector – Right Angle, Compatible with 2# Semi-Rigid / Semi-Flexible Cable

    Ask Lasest Price
    Brand Name : SIPU
    Payment Terms : L/C, T/T, Western Union
    Model Number : SMP-KWB2A
    Certification : ISO9001-2017, RoHS, CE
    Price : Discuss
    Delivery Time : 3-6 Weeks
    Supply Ability : 100000pcs/year
    • Product Details
    • Company Profile

    SMP Female RF Coaxial Connector – Right Angle, Compatible with 2# Semi-Rigid / Semi-Flexible Cable

    SMP Female RF Coaxial Connector – Right Angle, Compatible with 2# Semi-Rigid / Semi-Flexible Cable

    Product Overview

    The SMP series connector is an ultra-miniature RF coaxial connector featuring a plug-in, self-locking design. It is characterized by its compact size, light weight, high-frequency performance, quick-connect capability, and strong vibration resistance. The design allows for slight axial and radial misalignment, making it an excellent solution for modular, high-density installations.

    Applications:
    Broadband systems, antennas, test and measurement equipment, radar, and other high-frequency applications.

    Product Features:

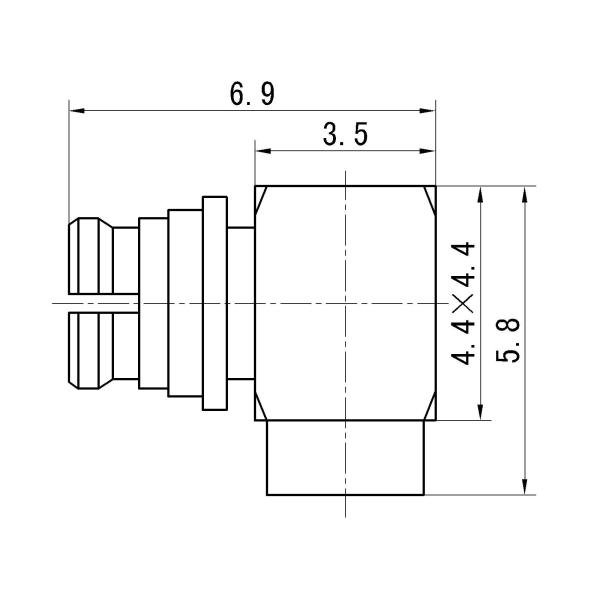

    Right-angle structure

    Compatible with 2# semi-rigid or semi-flexible cable

    Compact and lightweight design

    Strong shock and vibration resistance

    Excellent electrical performance

    Easy to solder and install

    Product Specifications



    Important Technical Parameters



    Electrical property


    Temperature range

    -65~+125℃

    Characteristic impedance


    50Ω

    Frequency range

    DC-26.5GHz

    Dielectric withstanding voltage


    500V

    VSWR

    ≤1.1+0.02F(GHz)

    Insulation resistance


    ≥5000MΩ

    Insertion loss

    ≤0.07√F(GHz)dB

    Contact resistance

    Center conductor

    ≤6.0mΩ

    Mechanical property

    Outer conductor

    ≤2.0mΩ

    Durability

    500times

    Materials and Surface Treatment


    Center conductor


    Beryllium bronze, gold plating

    Insulating medium

    PTFE


    Outer conductor


    Beryllium bronze, gold plating

    //
