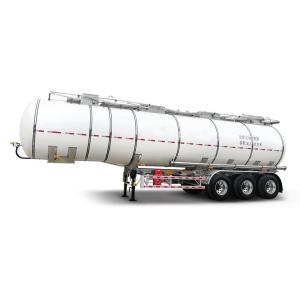

    Carry Palm Oil Insulated Tanker Trailers 3 Axles 43500L 28t

    Ask Lasest Price
    Supply Ability : 100 Unit/Units Per Month
    Certification : ISO9001, CCC, ISO/TS16949
    • Product Details
    • Company Profile

    Carry Palm Oil Insulated Tanker Trailers 3 Axles 43500L 28t

    Insulated Carbon Steel Tank Semi Trailer with Fuwa Axle 13t and Air Bag Spring Suspension for Palm Oil Crude Oil Bitumen

    Product Overview

    what is an Insulated Tanker Trailer ?

    Insulated Tank trailer or tanker Trailer (United States usage), is a type of tanker Trailer designed to carry the temperature sensitive liquid like Palm Oil and bitumen and a variety of chemical liquid with huge difference in aspect of physical and chemical properties, also poisonous liquid. With leading technologies and production process, we provide for insulation tank semi-trailers with excellent performance. They provide outstanding insulation performance, which allows a temperature change inside the tank down to 0.2 0C every 4 hours, not only creating an optimal transport condition, but also protecting the transport safe and quality.
    FEATURES AT A GLANCE
    Best Insulation Design Allows a temperature change inside the tank down to 0.2 0C every 4 hours3 Axles 43500L 28t Insulated Carbon Steel Tank Semi Trailer with Fuwa Axle 13t and Air Bag Spring Suspension for Palm Oil Crude Oil Bitumen
    3 Axles 43500L 28t Insulated Carbon Steel Tank Semi Trailer with Fuwa Axle 13t and Air Bag Spring Suspension for Palm Oil Crude Oil Bitumen3 Axles 43500L 28t Insulated Carbon Steel Tank Semi Trailer with Fuwa Axle 13t and Air Bag Spring Suspension for Palm Oil Crude Oil Bitumen3 Axles 43500L 28t Insulated Carbon Steel Tank Semi Trailer with Fuwa Axle 13t and Air Bag Spring Suspension for Palm Oil Crude Oil Bitumen
    Tail with Diesel Heater elevationPU Insulation elevation
    Front elevation
    PRODUCT SPECIFICATIONS
    43500L 28T Insulated Carbon Steel Tank Semi Trailer 3 axles for palm oil Crude oil bitumen
    ItemsGET9433GYYBW.Plus+
    Tank MaterialCarbon Steel
    Overall Exterior dimension (mm)Length13000
    Width2500
    Height (unload)3550
    Outside dimension of tank body (mm)Length12730
    Rated Volume (L)43560
    GVW (kg)39660
    Curb Weight (kg)11160
    Rated payload (kg)28500
    Wheel base (mm)6960+1310+1310
    Tread (mm)Front
    Rear1840
    Front/Rear Overhang (mm)-/2200
    Approach/Departure angle (°)-/16
    Rated payload of 5th wheel15670
    Trailer Running SystemTrailer AxleGET SQUARE AXLE12T*3
    Tires11.00R22.5*12
    SuspensionAir Bag Spring Suspension
    Brake SystemDual air brake system, Wabco relay emergency valve with ABS OPTIONS: EBS
    Kingpin:3.5" /2" JOST.
    Landing Gear:2 speed road side winding with sand shoe,Type: JOST C200T.
    Electrical System:Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185.

    3 Axles 43500L 28t Insulated Carbon Steel Tank Semi Trailer with Fuwa Axle 13t and Air Bag Spring Suspension for Palm Oil Crude Oil Bitumen
    Temperature Control SystemInsulation
    Material:
    Rock Wool 50mm
    Optional: 50mm PU Foam
    Heat SystemWe supply three type of Heat System for the bitumen or Crude Oil Transport
    1. Outlet Hot Steam with Inside Pipe System
    2. Exhaust Heat System with Tank Inside Pipe
    3. Diesel Powered Burner with Inner Heated Oil Pipes
    Tank Safety ValvesManhole CoverAluminum Material Size : φ460, 560,580 witih P/V vent Valves and Safety Valves Optional : Stainless Steel
    Emergency Foot ValvesAluminum Alloy Material size : 2" (80) , 3" (100) ,Pneumatic Control Optional : Stainless Steel
    API Adaptor ValvesAluminum Alloy Material size : 3' (100) API Adaptor Valves. Optional : Stainless Steel
    Pneumatic Control System
    Others:Spare Tire Carrier: Equipped two sets per chassis without spare tire.
    Side Guard: Steel.
    Tool Box: Equipped one set.
    Painting: Color by customer's requirement.
    Marking: By customer's requirement.
    Options: Oil Tank: 300L carbon steel.
    PRODUCT CONFIGURATION

    Closed Loading System

    There are many significant advantages offered by Closed Loading System, such as fire prevention, spill prevention, higher operation safety, vapor recovery, avoidance of product contamination, faster loading and less expensive loading islands. It has
    become a standard required by the government.

    Stability System

    The stability system of GET Vehicles acts as real-time monitoring of driving conditions of the vehicle and intervenes
    automatically in situations where vehicle stability enters a critical area. Its brakes specific wheels in order to help the vehicle returning to safe driving conditions, preventing rollover or out of control.

    Operation Monitoring System

    Operation-monitoring system detects the whole process about tank loading, transportation and tank unloading. All real-time information about manholes, cut off valves, API connections, pipes and bottom valves will be detected and saved.
    SALES AND SERVICE NETWORK
    3 Axles 43500L 28t Insulated Carbon Steel Tank Semi Trailer with Fuwa Axle 13t and Air Bag Spring Suspension for Palm Oil Crude Oil Bitumen
    Successful Project
    3 Axles 43500L 28t Insulated Carbon Steel Tank Semi Trailer with Fuwa Axle 13t and Air Bag Spring Suspension for Palm Oil Crude Oil Bitumen
    Project in Africa for Palm oil
    3 Axles 43500L 28t Insulated Carbon Steel Tank Semi Trailer with Fuwa Axle 13t and Air Bag Spring Suspension for Palm Oil Crude Oil Bitumen
    Project In Latin America
    3 Axles 43500L 28t Insulated Carbon Steel Tank Semi Trailer with Fuwa Axle 13t and Air Bag Spring Suspension for Palm Oil Crude Oil Bitumen
    Project in Africa for Crude Oil
    Related Products
    FAQ
    Q: what is an Insulated Tanker Trailer ?
    A: Insulated Tank trailer or tanker Trailer (United States usage), is a type of tanker Trailer designed to carry the temperature sensitive liquid like Palm Oil and bitumen and a variety of chemical liquid with huge difference in aspect of physical and chemical properties, also poisonous liquid. With leading technologies and production process, we provide for insulation tank semi-trailers with excellent performance. They provide outstanding insulation performance, which allows a temperature change inside the tank down to 0.2 0C every 4 hours, not only creating an optimal transport condition, but also protecting the transport safe and quality.
    Q1Why choose carbon steel tank semi-trailer?
    A1 Carbon Steel is the favorite material of Chinese tanker-manufacturing all the time because of not only its high material strength, but also the characters of easy-repair and low maintenance costs. G.E.T Vehicles provides high-volume and small-size carbon steel fuel tank semi-trailer with 3 axles to customers. With 50000-liter max volume, 9200kg min weight and European ADR standard, it is an optimal transporter for fuel logistic industry.
    Q2what is necessary for a Tank Semi trailer Inquiry ?
    A2 a. The Volume of the Tank of your demands b. The Material of the tank you want ? C. The loading Liquid Medium for the tank ? For Example: 2 units Carbon Steel 42000L for Fuel with 4 compartments.
    Q3How to ship the tank Semi trailers ?
    A3 We can supply the tank in two types, one is CBU ( complete Built up ) the other is SKD ( Semi -Knocked Down )and CKD ( complete Knocked Down). a. CBU type can ship with Rol-Rol and General Cargo Vessels and The flatbed Container . b.CKD& SKD Type can ship with Container to save the Freight, and we can aslo supply the assembly Technology.
