    Wheel Driving Urban Distribution Truck Box High Performance

    Ask Lasest Price
    Certification : ISO9001
    Supply Ability : 200 Unit/Units Per Month
    • Product Details
    • Company Profile

    Wheel Driving Urban Distribution Truck Box High Performance

    Brief Instruction

    GET VEHICLES | COLD CHAIN BOX Refrigeration Truck body ,Thanks to the modular system, our box body can be individually configured for a wide range of applications. Logistics challenges are rising with consumers' more exacting requirements. The GET COOL truck box body is a high performance truck with box body designed to meet individual requirements, which fits all well-known truck manufacturers' chassis.

    Main Parameters

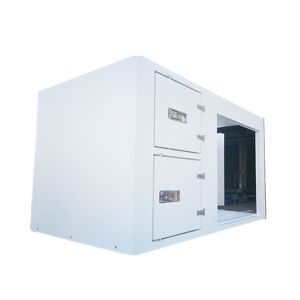

    Urban Distribution Truck Box
    Multi-Compartments Truck Body for Urban Distribution Truck
    MODEL:GET.6KDX.XPS.
    There are many small Retails asked different cargos at small quanity which is also need to delivery under cold Chain to keep its fresh and healthy. Our this Urban Distribution can amount to all the City Pick Up Chassis, box divide to different compartments for the cargos basket with Rails , that can help you to distribute more kinds of cargos for more retails in the downtown .
    Special REQUIREMENTS
    Multi-CompartmentsWith different compartments for different temperature and food like fruits and vegetables and meat.

    Some compartments is insulation only for normal food, some is frozen with refrigeration units for meat and frozen cargos, some is cool place for fresh vegetable or other fruints to meet the urban distribution purpose.

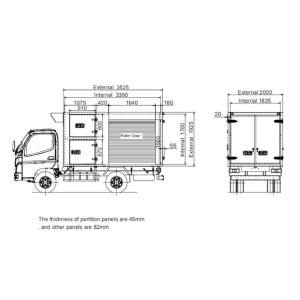

    GENERAL PARAMETERS
    K .Value for the Composite Box0.295 W/m2 ºC
    Max. Overall Length12 ft3,525 mm0~14750mm can customized
    Max. Overall Width7 ft2,000 mm0~ 3200 mm can customized
    Max. Overall Height6 ft1,925 mm0~3200 mm can customized
    Max. Floor Thinckness3 .23 inch82 mm45-105mm can customized
    Side Wall Thickness3 .23 inch82 mm45-105mm can customized
    Front Wall Thickness3 .23 inch82 mm45-105mm can customized
    Rear Door Panel3 .23 inch82 mm45-105mmcan customized
    Roof Wall3 .23 inch82 mm45-105mmcan customized
    Compartment Walls1 .77 inch45 mm
    FRP 2mm/PUR:40kg/m³±2 FRP Panels (Excluding Floor)
    Panel DetailsWall typesThicknessStructure( Inter.Skin + Insulation+Exter. Skin)Remark
    Side Wall Panel80.00mmFDA "Approvable" CFRP + XPS + FRP
    Front Wall Panel80.00mmFDA "Approvable" CFRP + XPS + FRPWith Refrigeration Units Installation Embedded Beam
    Rear Wall Panel80.00mmFDA "Approvable" CFRP + XPS + FRPwith Door Hinger Installation Embedded Strengthen
    Roof Wall Panel90.00mmFDA "Approvable" CFRP (Interior) + XPS + Anti UV FRP (exterior)
    Floor Panel80.00mmAluminum Air Duct (Interior)+PUR (injection Foaming 45kg/m³)+FRPWith Cross Beam Embedded
    Standard: Floor with Alu.Duct for America Market

    Best Cold Air Circle
    Urban Distribution Truck Box
    Urban Distribution Truck Box
    Rear Door
    Urban Distribution Truck BoxUrban Distribution Truck Box
    Your Benefits

    Standard Floor : Aluminum Duct

    (H=15mm,20mm,35mm,50mm)
    Urban Distribution Truck Box

    Aluminum Extrusion

    90 Degree Aluminum Extrusion, L shap or Round Corner Choice
    Urban Distribution Truck Box

    Cargo Fix Racks

    Stainless Steel material for cargo fix installed on the side wall interior.
    Profiles Options
    Urban Distribution Truck Box
    Refrigeration Units

    Urban Distribution Truck Box

    Production Workshop
    Urban Distribution Truck Box
    Urban Distribution Truck Box
    FAQ

    What is refrigerated truck box body?

    Refrigerated truck, sometimes we call it reefer truck box body. Sometimes we call it freezer truck box body. Sometimes chiller truck box body. Sometimes cold room truck box body. All in all, We calls it refrigerated truck.Reefer truck box body is a kind of box which can load the cargoes which need to keep cold and fresh. Such as icecream, chill chicken, chill fish, freezer meat, sometimes vegetables and so on.

    Our refrigerated truck box body is the Sandwich structure. External FRP material+PU core+Internal FRP. Normally, the thickness of FRP is 2mm. It also can be customized. As the PU core, normally, the density is more than 40kg/m. And the thickness is changeable by customers' request and designing request.

    The parts of FRP reefer truck box body is adopted the highest configuration. They are 304 stainless steel parts for door lock and door frame. Aluminum profile for connecting all the panels. The importing rubbers make the door be sealing. So the whole reefer truck box body is all-closed without any gap.

    What's the material of your refrigerated truck body?

    We can produce FRP(Fiberglass Reinforced Plastic), Color Steel Sheet and Stainless Steel Material for the refrigerated truck body.The Core Material can be PU,XPS.

    If want the price, what should offer us the information?

    You need offer us the material, size(length, width, height and thickness of the panel) and quantity of the truck body as the
    basic information.

    What is the CKD and CBU means ?

    CKD means completely knocked down. That means offer all the parts of the truck body(Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you have to do some works, but It can save much shipping charges.
    CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.

    How long life of your truck body?

    It depends how will use it. Normally, the life is about 15~20 years

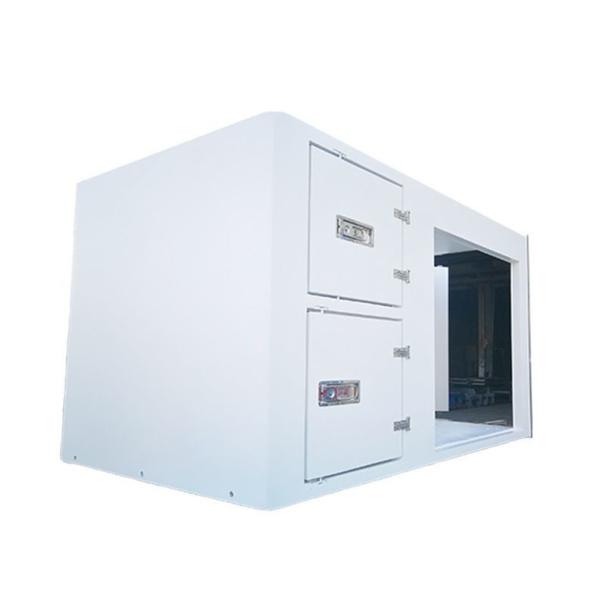

    Quality Wheel Driving Urban Distribution Truck Box High Performance for sale
