Portable Welded Square 3x3 inches Military Barrier Defensive Stone
Box Barriers In Ghana
Hot galvanized wire
Usually, the materials for welding gabion boxes are hot-dip
galvanized wire and Galfan coated wire, which are corrosion
resistant, high in strength and long in service life. Wire
diameter: 5.0mm (thick enough to withstand impact)
Spring wire for connecting mesh plates
Usually, the spring wire is made of the same wire as the metal
panel. It informs the net cage to load sand or stones together with
the panel. Spring wire diameter: 4.0 mm
Welded mesh plate
We have a full-automatic machine, which is mainly used for
thick-line welding of screen plates, and deep welding points make
the screen plates firmer. Mesh: 75mm * 75mm (standard and strong)
You can also make bigger holes according to customer's
requirements.
Geotextile
It has various colors: sand, brown, gray and green. Generally, the
weight of geotextile is 300 GSM and our geotextile is uniform in
thickness, reaching the national standard.
| Technical specification for Geotextile Fabric |
| Color | Beige, green |
| Mass(g/m2) | 250,300,350,500,600 |
| Tensile strength | 16KN |
| Tear strength | 0.42KN |
| CBR puncture | 3.0KN |
| UV strength retention ASTM D4355 | 50% at 500 hours(5 years use life in common enviroment) |
| 70% at 500 hours(10 years use life in common environment) |
Application of Military Defensive Barrier
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure,
Hebei KN products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Defensive Barriers can as the Dike against the Flood permanently or
Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Gabion Box can as a retaining Wall to
against the flood.
4. Protection Engineering of Seaside Area
Defensive Wall is more and more homemade at the seaside area as
Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Standard Technical Specifications from SX1 to SX19
| Welded Military Used Shooting Range Barrier |
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |

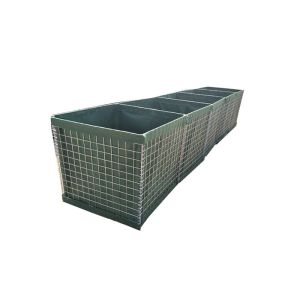

Defensive Barriers, also known as explosion-proof wall and
flood-proof wall, are new products assembled and sewed by welded
gabion mesh and geotextile. It can hold fine sand, dirt and stones,
can replace sandbags in traditional bunkers, and can be recycled.
Defensive Barriers are different from traditional gabion baskets.
It can hold not only stones but finer silts as well. Filling is
made from local materials and is especially suitable for downstream
or coastal use where stones are scarce. With the help of advanced
tools such as excavators and forklifts, the installation efficiency
is dozens or even hundreds of times that of traditional sandbags.
Application of Defensive Barrier:
1. Military fortifications
Most armies use defense barriers to build military fortifications
because they can be stacked on top of each other. You can change
the width and height according to your requirements. More simple
and flexible.
2. Shooting range
Nowadays, many people use defense barriers to build shooting ranges
because of its high defense strength and safety.
3. Flood control
Defense barriers are becoming more and more popular and easy to
assemble, and good permeability. Most countries near coastlines
choose defense barriers as flood prevention walls. Even around the
hotel, they erected protective walls.
Advantages of Defensive Barrier:
~Military Defense
~Perimeter Security Barrier and Defence Wall
~Temporary Fort and Command Post
~Observation Points and Border Checkpoints
~Military Barrier Fortification System
~Equipment Revetment
~Explosives and Contraband Search Areas
Features:
1.easy to handle and install
2.High tensile and anti-impact capability
3.long life time
