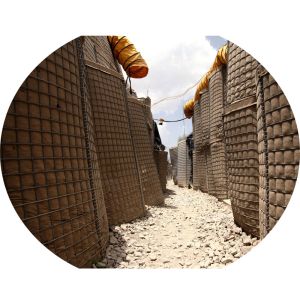

Hot Galvanized Welded Military Defensive HESCO Barrier Boxes With
Geotextile
As the name implies, the defensive barrier was originally mainly
used for protection, fortifications, explosion-proof walls, etc. It
is made of foldable welded gabion net and ultraviolet protection
heavy geotextile lining. The common surface treatment is hot dip
galvanizing before welding, welding after galvanizing and Galfan
coating. They all have a long service life. It is widely used in
Iraq, Afghanistan and Africa.
Material : All wires conform to BS EN10218-2012,Zinc-Alunminum
coating are to BS EN 10244-2:2009
Geotextile: heavy duty geotextile, non-woven,permeable,
polypropulene farbric
Geotextile color: beige or green color
Mesh Hole: 3” X 3”
Unit Size : 2.13m x 1.06m x 33m
Cells:1unit=5 cells+5cells+5cells+5cells+5cells+5cells=30cells
A geotextile lined unit for general use as an earth filled barrier
.
The units are suitable for filling with earth ,sand,gravel,crushed
rock and other granular materials.
The unit fulfills a wide range of users,including the construction
of protective walls and barriers.
The Standard Technical Specifications from SX1 to SX19
| Welded Military Used Shooting Range Barrier |
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
Defense barriers come in many sizes. Most fences can also be
stacked and packed into a compact set. Whether used as protective
barriers or to define borders, security barriers and T-walls are
used to protect equipment, facilities, vehicles and personnel in
peacekeeping, humanitarian and operations.
Defensive barriers are walls that are resistant to blast shock
waves, limiting the destructive effects of explosions to a certain
range. Compared with concrete explosion-proof wall, it has the
advantages of light weight, easy installation, easy disassembly and
recycling.
Defensive barriers can be widely used in:
Perimeter security and defensive walls, equipment revetments,
search areas for explosives and contraband, personnel and material
bunkers, observation points, defensive firing positions, road
checkpoints, border checkpoints. Protection of existing structures,
freeway traffic management, flood protection, watercourses,
emergency flood protection deployment, erosion control retaining
walls.
Defensive barriers features:
Easy to handle and install
High strength and impact resistance
Long life, normal use
Can be filled with sand, cement, stone, dirt.
Defensive Barriers are different from traditional gabion baskets.
It can hold not only stones but finer silts as well. Filling is
made from local materials and is especially suitable for downstream
or coastal use where stones are scarce. With the help of advanced
tools such as excavators and forklifts, the installation efficiency
is dozens or even hundreds of times that of traditional sandbags.
