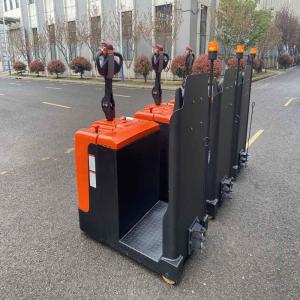

    20 Tons Electric Towing Tractor Mechanical Steering Walkie Type Four Wheel Solid Tire Load-bearing Structure

    Ask Lasest Price
    Brand Name : YONGJIELI
    Model Number : QDD-E
    Certification : CE
    Price : USD12100.00
    Payment Terms : L/C, D/A, T/T, Western Union
    Supply Ability : 30 SETS/ MONTH
    Delivery Time : 30 WORK DAYS
    • Product Details
    • Company Profile

    20 Tons Electric Towing Tractor Mechanical Steering Walkie Type Four Wheel Solid Tire Load-bearing Structure

    Product parameter


    驱动方式Type of power

    铅酸电池

    Lead-acid battery

    驾驶方式Driving type步行式Walkie type
    额定牵引重量Pated traction capacit)Q(kg)20000
    总长Overall lengthL1(mm)2270
    总宽Overall widthb1(mm)1060
    总高Overall heighth11(mm)1235
    牵引座高度Height of traction baseh10(mm)305/325/345
    操作手柄高度Height of operating handleb11(mm)1380
    整车离地间隙Height of vehicle off the ground (min)m(mm)118
    蓄电池,电压/额定容量Battery,voltage/capacityV/Ah36V/240A
    电池重量Weight of batterykg216
    整车重量(含电池)Vehicle weight (including battery)kg2170
    驱动电机功率(S2-60min)Driving Motor Power (S2-60MIN)KW36V/4KW
    轮胎Tire橡胶实心轮胎 Rubber solid tire
    轮子尺寸,前轮Wheel dimensions,front wheel3.50-5
    轮子尺寸,后轮Wheel dimensions,rear wheel4.00-8
    轮子,前后数量(x=驱动轮)Number of wheels,front and rear(x=driving wheel)2/2x
    后轮轮距Rear wheel trackb10(mm)907
    轴距Wheelbasey(mm)1060
    转弯半径Turn radiusWa(mm)1370
    轴负载,空载前/后Axle full load,/no load front/rearkg443/1727
    行驶速度,满载/空载Driving speed,full load/no loadKm/h2.5/4.0
    爬坡能力,满载/空载(S2-5min)Maximum climb,full load/no load (S2-5MIN)9%2.0/12.0
    制动方式Braking type电磁制动Electromagnetic brake


    本公司保留更改产品设计和规格的权利,参数若有改变,恕不另行通知

    The companyreserves the right to change product design andspecifications.Parameters are subject to change without prior notice
