Product Description:
GJS-206M: A Conformant FOSC for China's Communications Industry

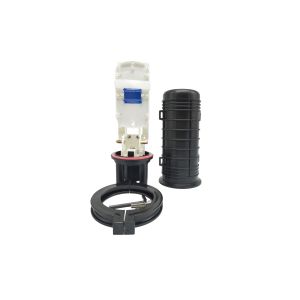

The GJS-206M is a fiber optic splice closure that meets the
standards and regulations of China's communications industry, as
specified by YD/T814-2004. Its design and features come together to
make it an ideal fit for use in various environments, such as
ducts, buried installations, and overhead installations.
Features of GJS-206M
- 1.1 The closure can be used in duct, buried, overhead, and other
installations efficiently.
- 1.2 It is made from high-quality impact material PP, and the
internal components are made of ABS.
- 1.3 It is designed to support ftth with adapter if required.
- 1.4 The GJS-206M has a large fiber storage basket.
- 1.5 The GJS-206M features a modular fiber management system.
- 1.6 It can accommodate cable diameters ranging from 8mm to 23mm.
- 1.7 The GJS-206M is sealed using a combination of heatshrink seal
cable port and mechanical shell.
- 1.8 The product comes with a 2-year quality warranty.
- 1.9 The GJS-206M has a life span of more than 25 years, offering
long-term reliability.
- 1.10 It is rated IP68 for superior protection against dust and
water.
The GJS-206M's wide range of features make it a great option for
anyone looking for a reliable and durable fiber optic splice
closure. Its design and materials also provide peace of mind, as it
conforms to the standards required by China's communications
industry.
Features:
Environment
The temperature range for this equipment is between -30℃ to 60℃,
while the atmospheric pressure should be maintained within the
range of 70-106Kpa.
Life Span
With a life span of more than 25 years, this equipment is made to
last.
Material
The material used in the construction of this equipment is high
strength polypropylene (PP). This ensures durability and longevity.
Technical Parameters:
| Attribute | Value |
|---|
| Type | Horizontal |
| Item | Fiber Optic Splice Closure 1IN-2OUT |
| Closure Dimension | 100mm X 330mm |
| Cable Capacity | 24 Core |
| Waterproof | IP68 |
| Seal | Lock Panel With Pressure |
| Package | Carton/Box |
| Shell | ABS |
| Application | Outdoor Or Indoor Fiber Optic Cable Splicing |
| Installation Method | Pole mounted, Aerial mounted kits |

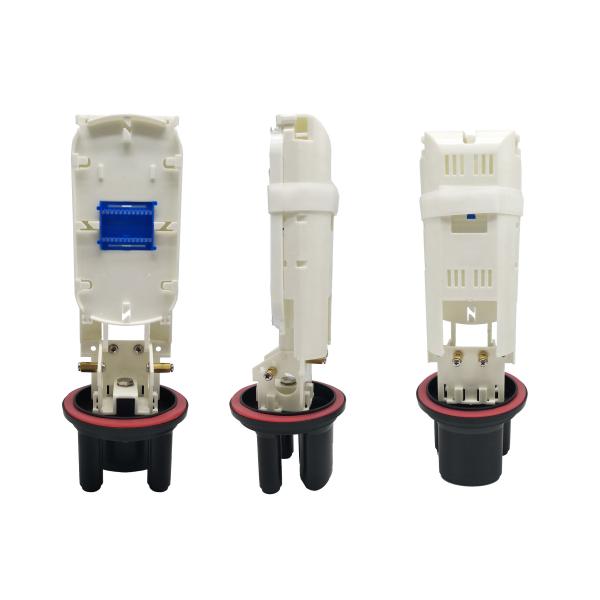

The cable storage plate is the same size as the splice tray, but
deeper and there are 4pcs SC adapter slots, then it can meet FTTH
application, and bring the fiber optic cable to end customers, and
drop cable with fast connectors are available.
