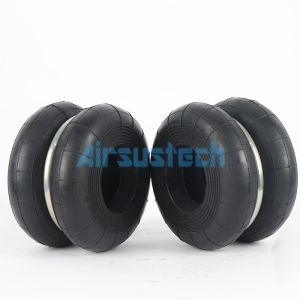

Japan Yokohama Suspension Air Spring S-120-2 Rubber Bellows Only With Hoop

    Buy cheap Japan Yokohama Suspension Air Spring S-120-2 Rubber Bellows Only With Hoop from wholesalers

    Buy cheap Japan Yokohama Suspension Air Spring S-120-2 Rubber Bellows Only With Hoop from wholesalers
    • Buy cheap Japan Yokohama Suspension Air Spring S-120-2 Rubber Bellows Only With Hoop from wholesalers
    • Buy cheap Japan Yokohama Suspension Air Spring S-120-2 Rubber Bellows Only With Hoop from wholesalers
    • Buy cheap Japan Yokohama Suspension Air Spring S-120-2 Rubber Bellows Only With Hoop from wholesalers
    • Buy cheap Japan Yokohama Suspension Air Spring S-120-2 Rubber Bellows Only With Hoop from wholesalers

    Japan Yokohama Suspension Air Spring S-120-2 Rubber Bellows Only With Hoop

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : F-120-2
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Japan Yokohama Suspension Air Spring S-120-2 Rubber Bellows Only With Hoop

    Japan Yokohama Suspension Air Spring S-120-2 Rubber Bellows Only With Hoop


    Product Description


    Rubber lining, a pivotal component in air spring technology, is a reconfigurable inner mold shaped by the unique polymer characteristics of vulcanized rubber and high-strength fiber cloth. This amalgamation of vulcanized rubber and fibers results in a product that is compressible, elastic, and airtight. When inflated with compressed air, the air bag expands to conform to the design specifications of its cross-section, thereby fulfilling the structural and functional requirements of the air spring system.
    The rubber air spring, known for its superior comfort and fatigue resistance, boasts a low quality factor, translating to a longer service life. Its inherent properties also contribute to effective vibration reduction and noise dampening, making it an ideal choice for a wide range of applications. From industrial machinery to precision instrumentation, the rubber air spring finds extensive use across various equipment, underlining its versatility and reliability in diverse operational environments.


    Product Specifications


    Design Height: 98 mm

    Compressed Height: 53 mm

    Expanded Height: 148 mm

    Commonly Maximum Stroke: ±53 mm

    The Largest Diameter When Compressed : 180 mm


    S-120 Items Detailed Parameter Table


    AIRSUSTECH NO.Reference NO.Height H [mm]

    Commonly Maximum

    Stroke [mm]

    The largest Dia

    When Compressed [mm]

    Design

    Height [mm]

    Max Height

    [mm]

    Min Height

    [mm]

    F-120-4S-120-4206306111±70180
    F-120-3S-120-315222782±53180
    F-120-2S-120-29814853±35180

    AIRSUSTECH NO.Reference NO.

    Standard Height, Internal Pressure

    0.19 Mpa When The General Value


    Using Max Internal Pressure [Mpa]Internal Pressure [Mpa]
    Effective Area [CM2]Volume [L]Load [kN]Dynamic Spring Parameters [N/Min]Vibration Frequency [Hz]
    F-120-4S-120-41133.45.2691.80.882.9-3.9
    F-120-3S-120-31132.15.2982.20.882.9-3.9
    F-120-2S-120-21131.255.21572.70.882.9-3.9
    F-100-4S-100-4791.953.9591.90.882.9-3.9
    F-90-3S-90-3791.43.9782.20.882.9-3.9
    F-90-2S-90-2790.853.91182.70.882.9-3.9
    F-90-1S-90-163.50.53.11032.90.883.9-4.9

    AIRSUSTECH Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below


    GUOMAT Part NO.Japan YOKOHAMA Reference No.Japan YOKOHAMA Reference No.GUOMAT Part NO.Japan YOKOHAMA Reference No.Japan YOKOHAMA Reference No.
    F-600-1F-600-R1600-1rF-240-4F-240-R4240-4r
    F-600-2F-600-R2600-2rF-240-3F-240-R3240-3r
    F-600-3F-600-R3600-3rF-240-2F-240-R2240-2r
    F-600-4F-600-R4600-4rF-240-1F-240-R1240-1r
    F-600-5F-600-R5600-5rF-220-4F-220-R4220-4r
    F-550-2F-550-R2550-2rF-220-3F-220-R3220-3r
    F-550-3F-550-R3550-3rF-220-2F-220-R2220-2r
    F-500-2F-500-R2500-2rF-200-2F-200-R2200-2r
    F-500-3F-500-R3500-3rF-200-3F-200-R3200-3r
    F-500-4F-500-R4500-4rF-200-4F-200-R4200-4r
    F-500-5F-500-R5500-5rF-160-1F-160-R1160-1r
    F-450-1F-450-R1450-1rF-160-2F-160-R2160-2r
    F-450-2F-450-R2450-2rF-160-3F-160-R3160-3r
    F-450-3F-450-R3450-3rF-160-4F-160-R4160-4r
    F-450-4F-450-R4450-4rF-120-4F-120-R4120-4r
    F-450-5F-450-R5450-5rF-120-3F-120-R3120-3r
    F-400-2F-400-R2400-2rF-120-2F-120-R2120-2r
    F-400-3F-400-R3400-3rF-100-4F-100-R4100-4r
    F-400-4F-400-R4400-4rF-90-3F-90-R390-3r
    F-400-5F-400-R5400-5rF-90-2F-90-R290-2r
    F-350-1F-350-R1350-1rF-90-1F-90-R190-1r
    F-350-2F-350-R2350-2rF-300-1F-300-R1300-1r
    F-350-3F-350-R3350-3rF-300-2F-300-R2300-2r
    F-350-4F-350-R4350-4rF-300-3F-300-R3300-3r
       F-300-4F-300-R4300-4r

    FAQ


    Q: Can you produce according to samples?
    A: Yes, it can be developed according to your samples or technical drawings.


    Q: How long does it take to get product after placing the order?
    A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.


    Q: How to guarantee your after sales service?
    A: (1) Strict inspection during production.
    (2) Recheck the products before shipment to ensure our packaging in good condition.
    (3) Track and receive feedback from our customers.


    Q: What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

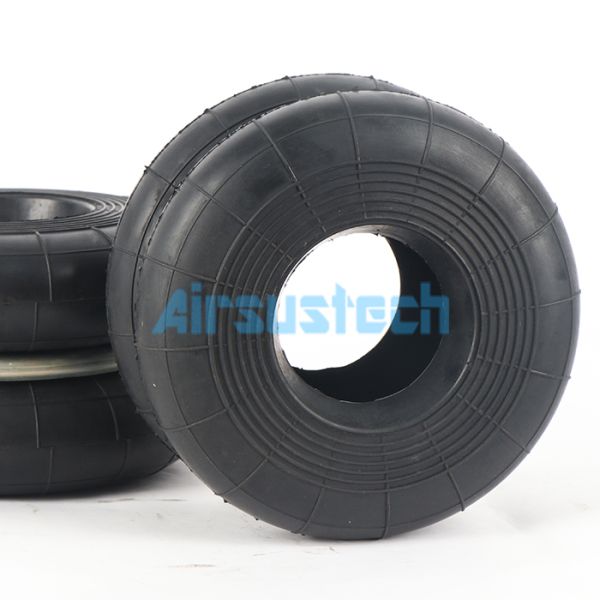

    F-120-2 Air Spring Detailed Pictures
