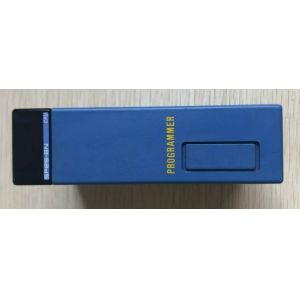

F3SP25-2NS1 YOKOGAWA CPU Module Range-free Multi-controllers High-speed Instruction

    Buy cheap F3SP25-2NS1 YOKOGAWA CPU Module Range-free Multi-controllers High-speed Instruction from wholesalers

    Buy cheap F3SP25-2NS1 YOKOGAWA CPU Module Range-free Multi-controllers High-speed Instruction from wholesalers
    • Buy cheap F3SP25-2NS1 YOKOGAWA CPU Module Range-free Multi-controllers High-speed Instruction from wholesalers
    • Buy cheap F3SP25-2NS1 YOKOGAWA CPU Module Range-free Multi-controllers High-speed Instruction from wholesalers
    • Buy cheap F3SP25-2NS1 YOKOGAWA CPU Module Range-free Multi-controllers High-speed Instruction from wholesalers
    • Buy cheap F3SP25-2NS1 YOKOGAWA CPU Module Range-free Multi-controllers High-speed Instruction from wholesalers

    F3SP25-2NS1 YOKOGAWA CPU Module Range-free Multi-controllers High-speed Instruction

    Ask Lasest Price
    Brand Name : Yokogawa
    Model Number : F3SP25-2NS1
    Certification : CO
    Price : inquiry
    Payment Terms : T/T
    Supply Ability : 10 Piece per a day
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    F3SP25-2NS1 YOKOGAWA CPU Module Range-free Multi-controllers High-speed Instruction

    F3SP25-2NS1 YOKOGAWA CPU Module Range-free Multi-controllers High-speed Instruction


    Description:

    The F3SP25-2NS1 is a CPU module for the FA-M3 Range-free Multi-controllers. It is dedicated to process ladder sequences.

    The high-speed instruction processing capability of the F3SP25-2NS1 makes it ideal for applications that require high speed and quick response.

    The use of index qualification and an object ladder language facilitates programming and program maintenance.Sampling trace features are provided that can collect and display the status of multiple devices with a maximum of 1024 scans.



    The programming tool link port is provided with a personal computer link feature, which allows the F3SP25-2NS1 to connect to a higher-level computer or display without a personal computer link module.

    The module permits reconfiguration of device size and operating mode according to the application in use.The user can define and register new instructions.

    Program debugging and maintenance can be easily performed using a rich set of functions such as forced set/reset that takes effect regardless of the result of program execution.



    Programs and data can be saved on an optional ROM pack.Programs can be protected using a protection feature.When installed in slot 2, 3 or 4, the F3SP25-2NS1 functions as an add-on sequence CPU module.

    High-reliability design and powerful self-diagnostics are provided. Errors detected during program execution can be logged with predefined messages.


    Product Details:

    Brand NameYOKOGAWA
    ModelF3SP25-2NS1
    ConditionNew
    Gross Weight/Shipping Weight2.2 lbs / 35.2 oz / 1kg
    Packing Size6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
    Country of Origin/Original CountryUnited States (USA)
    Lead TimeIn Stock
    Shipping PortXiamen
    PaymentT/T
    Sales PriceInquiry
    ColorDepend on product
    Warranty12 months
    Lead time5-8 work days
    Courier partnersDHL, UPS, TNT, FedEx and EMS



    Additional Information:

    Description
    Control ModeStored program, repetitive operation
    I/O Control ModeRefreshing method/direct I/O instruction
    Programming LanguageStructured ladder language, mnemonic language
    Basic Instruction25 types
    Application Instruction307 types
    Basic Instruction0.12-0.24 µs per instruction
    Application InstructionFrom 0.24 µs per instruction
    Program Size20 K steps (Can be written to ROM)
    Maximum Number of I/O4096 points
    Current Consumption420mA(5V DC)





    Datasheet Link:Yokogawa F3SP25-2NS1.pdf
