YUKEN DSG-01 Series Solenoid Operated Directional Valves
DSG-01-2B2-A240-N1-50

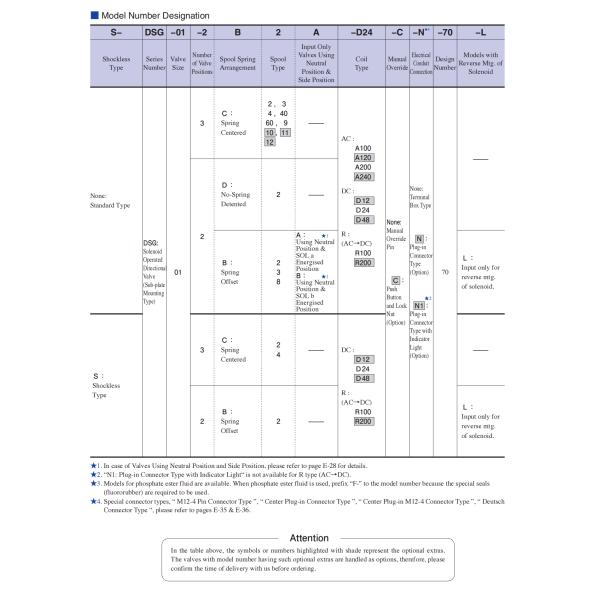

Order Codes:
DSG-01-2B2-A240-N1-50
DSG-01-3C2-A240-N1-50
DSG-01-3C3-A240-N1-50
DSG-01-2D2-A240-N1-50
DSG-01-3C4-A240-N1-50
DSG-01-3C60-A240-N1-50
DSG-01--2B2-D24-N1-50
DSG-01-3C2-D24-N1-50
DSG-01-3C3-D24-N1-50
DSG-01-2D2-D24-N1-50
DSG-01-3C4-D24-N1-50
DSG-01-3C60-D24-N1-50
| Valve Type | Model Numbers | Max. Flow*2 L/min | Max. Operating Pressure MPa | Max.T-I Line Back Prssure MPa | Max. Changeover Frequency min-l | Mass kg |
| Standard Type | DSG-01-3C*-*-70 | 100 | 35 | 21 | 300 R Type Sol. Only 120 | 1.85 |
| DSG-01-2D2-*-70 |
| DSG-01-2B*-*-70 | 1.4 |
| Shockless Type | S-DSG-01-3C*-*-70 | 63 | 25 | 21 | 120 | 1.85 |
| S-DSG-01-2B2-*-70 | 1.4 |
| Low Wattage (14W) Type | L-DSG-01-3C*-*-70 | 40 | 16 | 16 | 300 R Type Sol. Only 120 | 1.85 |
| L-DSG-01-2D2-*-70 |
| L-DSG-01-2N*-*-70 |
| L-DSG-01-2B*-*-70 | 1.4 |
Pressure: 16 MPa
Flow Rate: 31.5 L/min
Viscosity: 35 mm2/s
Voltage: 100 %V at rated voltage
Setting Pressure (Ps) : 7 MPa
Load (Ｗ) : 1000 kg
Cylinder Speed : 8 m/min
Material: Steel SCM
Screw Type: Meter Coarse Screw
Finishing:Black Oxide Film
Class of Strength: 12.9
Standard : Based on JIS B 1176(2014)
The World's Highest Level of High Pressure, High Flow and Low
Pressure Drop
These Solenoid Operated Directional Valves realized the world's
highest level of high
pressure, high flow and low pressure drop, the features of which
can be materialized by
employing a powerful wet type solenoid and the rational flow
channel design including 5 chamber system.
● High Pressure & High Flow Rate
In comparison to our existing lines, both the pressure and flow of
these valves are much
increased.
● Max. Operating Pressure: approx. 10 % increased [31.5→35 MPa]
● Max. T-Line Back Pressure: approx. 30 % increased [16→21 MPa]
● Max. Flow : approx. 60 % increased [63→100 L/min]
● Low Pressure Drop
The pressure drop of these valves is reduced by 10 % from 1.0 to
0.9 MPa, in comparison to
our existing lines*; the valves effectively reduce the energy
consumption of the unit.
★At Flow Rate: 60 L/min, Spool Type: 3C2 (P→A)
● Compact & Small Mass
Despite of high pressure, high flow and low pressure drop, these
valve bodies are compact
and lightweight with DC double solenoids; the overall length and
mass are reduced from
210 to 205 mm and from 2.2 to 1.85 kg, respectively.
● Shockless type available
In addition to the standard valves for high pressure and high flow,
a shockless type capable
of minimizing noise and vibration in piping during spool changeover
is also available.
● Stable Operation
Due to the powerful magnetic and spring force of the solenoids,
these valves exhibit a high
tolerance to contaminants and especially stable operation.
● IP65-equivalent high dust- and water-proof
These valves demonstrate excellent dust- and water-proof
characteristics, in compliance
with I. E. C. Pub. 529. IP65 and JIS C 0920 IP65 (dust- and
jet-proof type). The Deutsch
Connector Type in compliance with IP67 is also available.
● Usable in products of various standards
These standard valves are CE certified for installation in
equipment overseas. UL/CSA
certified products are also available. (UL/CSA certified products
are special design
products, so for details, please contact us.)
● Various Type of Connection
In addition to the current Terminal Box Type and Plug-in Connector
Type, according usage
you can select M12-4 Pin Connector Type suitable for serial
transfer, Center Plug-in
Connector Type to contribute shortening the wiring man-hour,
Deutsch Connector Type
with good water-proof characteristics
