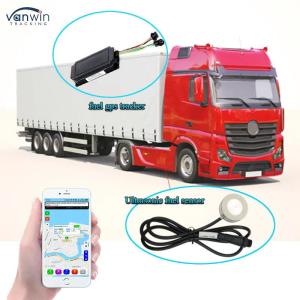

Truck Fuel Monitor Global Positioning System Tracker Fuel Tank
Level Sensor Fuel Level Temperature Sensor
Fuel tank monitor product description:
Model TUB ultrasonic fuel level sensor is installed on the bottom
of the tank. Ultrasonic wave goes
from the bottom of the tank to the top of the fuel surface,
reflects and goes back to the bottom.
The time it takes the sound burst to return to the sensor is
measured and translated into a distance
measurement that can be converted into a level indication, volume
measurement by the sensor.
Model TUB ultrasonic fuel level sensor is a perfect solution for
monitoring the fuel level and fuel
consumption of commercial vehicles and also stationary tanks, etc.
The sensor can detect and report fuel theft in real-time by sending
an alert. For the fuel level,
it is measured and sent to GPS tracker directly, then upload it to
the server and processed to
display on your computer, mobile phone or tablet.
Automotive fuel rod actuator Key Features
• Perfect design to detect fuel tank without drilling holes.
• Accurate measurement of fuel level, same as capacitive fuel level
sensor.
• Stable performance even in extreme temperature conditions with
automatic
temperature compensation capability in range from -30℃ to 75℃
• Easy installation.
• IP67 protection.
1. Specifications
| Item | Value |
| Power supply | 9~36VDC |
| Power consumption | 0.36W / 12VDC |
| Operational temperature | -30°C to 75°C |
| Storage temperature | -40°C to 85°C |
| Measuring range | 6~400cm |
| Accuracy | ±0.5% FS |
| Resolution | 0.1mm |
| Protection rate | IP67 |
| Serial port output | RS232 analog signal 0-5V |
| Baud Rates | Default 9600 or Customized. No parity bit; 8 data bits; 1 stop bit; no flow control. |
2. Installation
Product List
| Item | Quantity |
| Model TUB31 (probe with 1m cable) | 1pc |
| Fuse | 1pc |
| Installation kit (Protective holder/Steel clamp/cable ties) | 1set |
| 8m extension cable | 1pc |
| WIFI tool (optional) | 1pc |
Important notes:
Ÿ Because the couplant and grease are forbidden materials for air
transport, so you need to buy
these two materials from local shops before the installation.
Ÿ Do not wash the tank within 6 hours after installation.
Ÿ Do not install the sensor when the temperature is below minus 10
degrees.
Installation & Setting
Step 1: Check the current fuel level
Please check the fuel gauge or fuel tank directly if the balance
fuel level is around or over 50%,
it is important for locating the installation spot and testing the
sensor after installation.
Step 2: Find and clear the installation area
The sensor must be installed on the central area of the bottom of
the fuel tank as per above figure.
Please clear this area completely before installation.
Application display of oil rod products:
QA:
Q: How to monitor vehicle fuel?
A: The VANWIN global positioning system fuel tracker can be
integrated with GPS fuel sensors, ultrasonic fuel sensors, or probe
fuel sensors. All collected fuel data should be uploaded to GPS
tracking software for real-time monitoring of fuel consumption.
Q: Can it monitor the fuel usage of trucks?
A: Yes, it is. It improves the operation of truck fuel tanks to
provide 99% accurate fuel consumption. Similarly, with the help of
ultrasonic fuel sensors, it can also monitor the fuel usage of cars
with irregular fuel tanks.
Q: My truck has 2 tanks, can it work?
A: Yes, it is. This device supports connection to up to 4 fuel
sensors and monitors the fuel usage of each fuel tank. The fuel
consumption data of each fuel tank should be clearly displayed on
the web, accompanied by detailed reports for each fuel tank.
Q: Is there a report of refueling or leakage?
A: Yes, it is. The refueling/leakage report should accurately
report the time and location of the addition or leakage.
Q: How can you support me? What is the warranty?
A: We provide real-time support through phone, email, and Whatsapp.
Provide a 24 month warranty.
Q: Do you still provide fuel sensors?
A: Yes, it is. We mainly supply ultrasonic fuel level sensors. Cost
competitive and easy to install.
