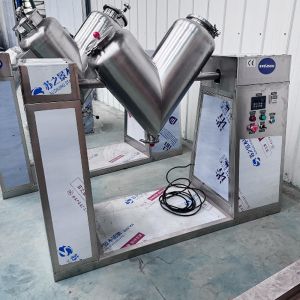

The V-shaped mixer is well suited for low-shear tumbling mixing of
powders and
granules. The V-shaped mixer is a type diffusion mixer that
provides intense
mixing action. As the V-shaped shell rotates, the powders are
repeatedly divided
and mixed together. The solids mixed in these units can different
bulk densities
and proportions of the total mixture. As the shell rotates, the
mixed materials are
continuously divided and intermixed. This type of mixer is commonly
used
pharmaceutical, food, chemical, and other industries.
The machine has a reasonable and simple structure, operates in a
closed manner,
and facilitates easy loading and unloading of materials (manual or
vacuum). The
cylinder is made of stainless steel for easy cleaning. The
machine's rotation is
driven by a motor and a cycloidal pinwheel reducer, which trans the
power through
a belt and then through a coupling to the V-shaped bucket, enabling
continuous
mixing within the bucket.
1. Compact structure, easy operation, stable operation, and
noiseless.
2. Can adapt to the mixing of various materials, with uniformity
rate of up to 98%.
3. When mixing frictional materials, the V-shaped mixer performs
well.
4. When mixing materials with goodity and similar properties, good
mixing results
can be achieved.
5. Can operate under vacuum feeding and disc valve discharging,
achieving
dust-free operation.
6. mixing materials prone to agglomeration and adhesion, it is
necessary to install
forced stirring blades or diffusion plates in the mixing equipment.
7. Adjustable speed timing device, and specially designed forced
stirring can
effectively ensure the uniformity of material mixing.
The high-efficiency V-type mixer model is suitable for a wide range
of applications.
With its excellent structure and reasonable design concept, it fast
mixing, uniform
mixtures, ease of operation, easy cleaning, sturdiness, durability,
compact structure,
and high technological content. It is widely used the
pharmaceutical, food, pesticide,
zinc oxide, detergent, veterinary medicine, compound fertilizer,
feed, oil, metallurgy,
building materials, coatings, dyes pigments, additives, calcium
carbonate, biological,
ceramics, chemical, fragrance, chicken essence, seasonings, tea,
chemical, building
materials, coatings, plastics rubber, seasonings, and other
industries for mixing
powder materials.
| Model | V-30 | V-100 | V-200 | V-300 | V-500 | V-1000 | V-1500 | V-2000 | V-3000 | Total volume
(L) | 10-30 | 100 | 200 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | | Effective volume
(L) | 5-15 | 50 | 100 | 150 | 250 | 500 | 750 | 1000 | 1500 | | Maximumloading
weight (kg) | 5-20 | 40 | 80 | 120 | 200 | 400 | 600 | 800 | 1200 | | Spindle
speed (RPM) | 29 | 1-12 | 1-12 | 1-12 | 1-12 | 1-12 | 1-9 | 1-9 | 1-9 | | Motor
power (kw) | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | | | Input power | 220V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V | Total turning
height (mm) | 1200 | 1500 | 1650 | 1800 | 2100 | 2400 | 2700 | 3000 | 3200 | | | Weight (kg) | 120 | 500 | 600 | 700 | 800 | 1000 | 1150 | 1400 | 2300 | Overall
dimension (mm)
L / w / h | 800*
400*
1200 | 1800*
600*
1500 | 2200*
650*
1700 | 2320*
720*
1800 | 2450*
720*
2000 | 3000*
900*
2300 | 3300*
1200*
2600 | 3800*
1200*
2900 | 4100*
1800*
3100 | | | | More sizes can be customized |
|
