Compact Electric Cylinder 6000N 12V Medical Actuators Synchronized
System
This compact electric cylinder medical actuator with 6000N thrust
and 12V/24V DC power operation. Work with LINSHENG 2-channel
synchronous controller LS-RSK-H1, offering user safety, efficiency
and convenience. It's ideal for medical applications requiring
smooth and reliable performance.
NOTE:
Actuators are tailored products, the price and specifications for
reference
Please provide us with the specification of the
actuators/controllers you need, we can give you recommendations.
Specifications:

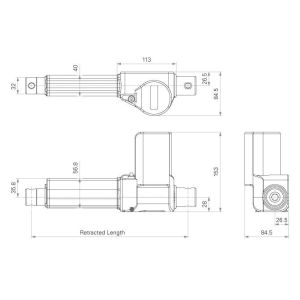

Actuator LS-PAT-14
| Controller LS-RSK-H1 |
Voltage: 12V/24VDC Loading force: 3500N / 6000N Stroke: 25mm ~ 300mm Retracted length: ≧S + 188mm Max. speed: 4.2mm/s (full load); 14.5mm/s ( no load) Color: Grey / Black Output signals: Hall sensors Max. current : ≦ 5A
|
Voltage: 12V~28VDC Max. current: 25A Operation: Remote control & Wired switch Certification: CE, FCC by SGS Frequency: 433.92MHz Remote range: 30 meters Features: 1. Synchronize 2 Hall actuators in any situation 2. Inbuilt overloading safety protection 3. Protection Amps value is adjustable |
Applications:
Rehabilitation Equipment
- Position adjustable features in rehabilitation machines, such as
therapy chairs and exercise devices
CT/MRI Scanners
- Facilitate precise motion and positioning of scanner components
or patient platforms
About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is
specialized in Auto motion, motion remote control systems,
automobile safety and security electronics for more than 10 years.
With an experienced R&D department of 19 engineers team, we can
provide customized design and molding to support your OEM/ODM
projects.
Support and Services:
All our products come with a one-year warranty. We provide
technical support and services for Linear Actuator Controllers. Our
team of engineers and technicians are available to help you
troubleshoot any problems you may be having with your Linear
Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is
sealed with tape and labeled with the product name and shipping
address. Your item will be shipped via UPS, FedEx , DHL or other
shipping courier you may prefer.
