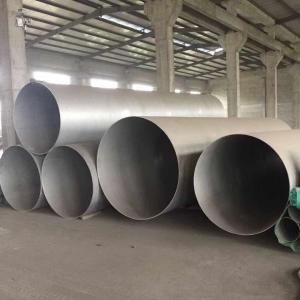

18" Sch10S Stainless Steel Pipe BE ASME B36.19M EFW(100% RT) ASTM
A358 GR 304L
| Product Name | Stainless Steel Pipe |
| Steel Grade | 300 series |
| Standard | JIS, AISI, ASTM, GB, DIN |
| Materials | 304/316L |
| Type | Stainless Steel Round Pipe/Tube |
| Wall Thickness | 0.6 mm-50 mm |
| Outer Diameter | 6.0-219mm(1/8"-8") |
| Length | 6m,or as required |
| Price Term | Ex-work, FOB, CFR, CIF, or as required. |
| Payment Term | T/T, L/C, D/P |
| Delivery Time | 15 Days |
| Package | Seaworthy Package,or as Required. |
| Application | Pharmaceutical, food, beer, drinking water, biotechnology, chemical
engineering, air purification, industry, etc |
| Grade | Description |
| 304 Stainless Steel Tubing | 304 stainless steel tubing is a versatile and widely used grade
known for its excellent corrosion resistance, especially in acidic
or corrosive environments. It offers good weldability and
formability, making it suitable for a wide range of applications,
including food and beverage processing, pharmaceuticals,
automotive, and structural components. |
| 316 Stainless Steel Tubing | 316 stainless steel tubing is highly corrosion-resistant and has
superior resistance to chloride corrosion compared to 304 stainless
steel. It is often used in marine environments, chemical
processing, and medical devices where exposure to corrosive
elements is a concern. Additionally, 316 tubing offers excellent
weldability and formability, making it ideal for applications
requiring high strength and durability. |
| Stainless Steel Mechanical Properties |
| Grade | Tensile Strength | Yide Strength | Elogation | Hardness | Solution Annealing |
| kgf/mm²(N/mm²) | kgf/mm²(N/mm²) | % | HRB(HV) | ºC |
| ASTM | TP 304 | ≥53 (515) | ≥21 (205) | ≥35 | ≤90 (200) | 1040ºC-1150ºC
Water Quenching |
| TP 304L | ≥50 (485) | ≥17 (170) |
| TP 316 | ≥53 (515) | ≥21 (205) |
| TP 316L | ≥50 (485) | ≥17 (170) |
| JIS | SUS 304 | ≥53 (520) | ≥21 (205) | 1010ºC-1150ºC
Water Quenching |
| SUS 304L | ≥49 (480) | ≥18 (175) |
| SUS 316 | ≥53 (520) | ≥21 (205) |
| SUS 316L | ≥49 (480) | ≥18 (175) |
| GB | 06Cr19Ni10 | ≥53 (520) | ≥21 (210) | 1010ºC-1150ºC
Water Quenching |
| 022Cr19Ni10 | ≥49 (480) | ≥18 (180) |
| 06Cr17Ni12Mo2 | ≥53 (520) | ≥21 (210) |
| 022Cr17Ni12Mo2 | ≥59 (480) | ≥18 (180) |
| EN | 1.4301 | (500-700) | ≥20 (195) | ≥40 | 1000ºC-1100ºC
Water Quenching |
| 1.4307 | (470-670) | ≥18 (180) |
| 1.4401 | (510-710) | ≥21 (205) | 1020ºC-1120ºC
Water Quenching |
| 1.4404 | (490-690) | ≥19 (195) |
| Stainless Steel Heat Exchanger Tube Tolerances |
| Standard | OD(mm) | WT(mm) | Length(meters) | Grade |
ASTM A249,
ASTM A269,
EN 10217-7 | 15.88 to 114.3 | 0.3 to 4.0 | Up to 18.3 meter | 1.4301, 1.4306, 1.4404,
AISI 304/304l/316l,
S31803/S32205, etc |
| Standard | Outside Diameter | Thickness | Length |
ASTM A249
(A1016) | <25.4 | ±0.10 | ±10%S | OD<50.8+3-0
OD≥50.8+5-0 |
| ≥25.4~<38.1 | ±0.15 |
| ≥38.1~<50.8 | ±0.20 |
| ≥50.8~<63.5 | ±0.25 |
| ≥63.5~<76.2 | ±0.31 |
ASTM A269
(A1016) | <38.1 | ±0.13 | OD<12.7±15%
OD≥12.7±10% | OD<38.1+3.2-0
OD≥38.1+4.8-0
|
Stainless Steel Grades
200series:201,202, etc
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347
400series:409,409L,410,420,430,431,439,440,441,444
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039
904L,etc
Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
304/304L/316L Stainless Steel chemical composition and Mechnical
properties
| Chemical Composition | Tensile Strength | Yield Strength | Elongation | Hardness
HRB |
| Grade 304 Stainless Steel (100% & MPA) |
| C≤0.08, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 8≤Ni≤10.5, 18≤Cr≤20 | ≥515 | ≥205 | ≥40 | ≤92 |
| Grade 304L Stainless Steel (100% & MPA) |
| C≤0.03, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 8≤Ni≤12, 18≤Cr≤20 | ≥485 | ≥170 | ≥40 | ≤92 |
| Grade 316L Stainless Steel (100% & MPA) |
| C≤0.03, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 10≤Ni≤14, 16≤Cr≤18 | ≥485 | ≥170 | ≥40 | ≤95 |
FAQ
Q: Are you a manufacturer?
A: Yes, we own our factory in Zhejiang province and you are welcome
to visit our factory.
Q: What can we buy from you?
A: Stainless steel pipes, pipe fittings,valve,flange and
non-standard customized.(All above are sanitary grade)
Q:Why we choose your products?
A: We are confident to provide customers with satisfactory products
at the suitable price.
Q:When can I get your reply after the inquiry?
A: Within 15minutes during working time, within 12 hours during
non-working time.
Q:What product information should we provide?
A: You need to provide the grade, diameter, thickness,the number of
tons and your demands.
Q:How long is your delivery time?
A: Within 5 days for stock delivery, 15-30 days for custom
delivery.
Q:Can you provide sample?
A: Sure, we provide sample for free.If you are interested in our
products, contact with us then we will send you our sample.
