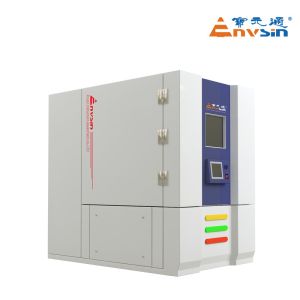

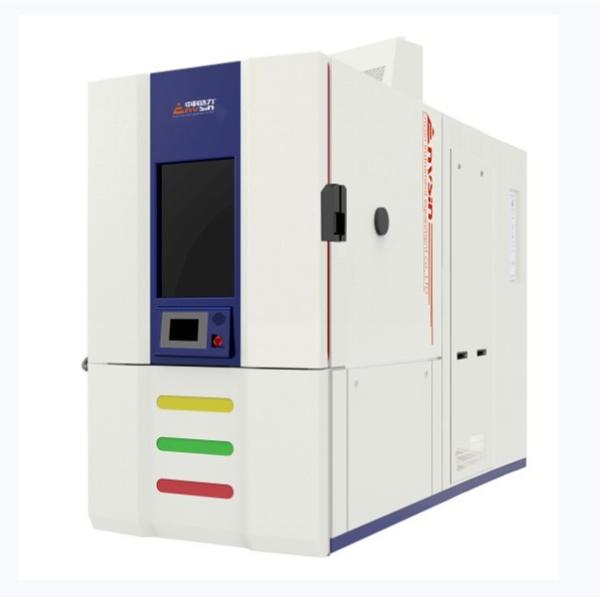

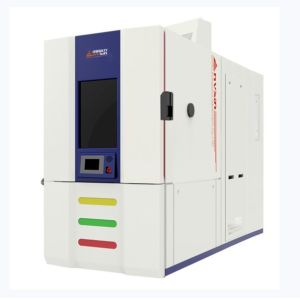

    Multifunctional 200L Climate Control Chamber With Observation Window

    Ask Lasest Price
    Brand Name : Envsin
    Model Number : ET6200S2
    Certification : CE and ISO
    Price : To Be Negotiated
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 25 per month
    Delivery Time : 30-35 business days after received the payment
    • Product Details
    • Company Profile

    Multifunctional 200L Climate Control Chamber With Observation Window

    Visualization Observation Window Climatic Test Chamber Rapid Temp Change Test Chamber


    The climatic test chamber is used for testing non-heat dissipation test samples and low heat dissipation test samples. For the test of heat dissipation test samples, the heat dissipation power should not exceed the temperature control cooling capacity of the refrigeration system of the climatic test chamber, otherwise it will affect the temperature conversion speed and capacity of the climatic test chamber. It is recommended that the heat dissipation of the test samples be less than 300W.


    Products Features:

    Optional APP mobility management.

    • Fashionable design of modular construction.

    • Optional network video monitoring and data synchronization.

    • Long defrosting cycles:over 700h's running before defrosting.

    • 4 load power outlets for specimens with programmable control for protection.

    • Automatic reminder of equipment maintenance plans and software of recording malfunction.

    • Environment-friendly refrigerating control technology:energy saving and rapid heating/cooling rate.


    Material:

    Outer material: cold rolled steel plate + double-sided electrostatic spraying process

    Inner material: SUS304 high-grade stainless steel plate

    • Insulation material: rigid polyurethane foam insulation layer


    Specifications:

    Model:climatic test chamber
    ET4200S2
    ET5200S2
    ET6200S2
    Test Space Volume(L)200
    Test Zones2
    Hot Chamber Temp.Range(℃)+50/+200
    Cold Chamber Temp.Range(℃)-75/+70
    Temp. Constancy(℃)±0.3-±1.0
    Temp.Homogeneity(℃)±1.0-±2.0
    Recovery Time(min)<5(on Air Outlet)
    Test Space Dimension(mm)600W*550D*600H
    External Dimension(mm)1200W*2500D*2200H

    Temp. Range(℃)

    -40/+150
    -55/+150
    -65/+150
    Max. Specimens Weight (kg)50
    Cooling MethodsWater-Cooled(IEC 60068-3-5)
    PowerAC380V±10%,50HZ,3/N/PE

    Compliant with International Standards:

    GB/T2423.22

    MIL STD 202F (Method 107G)

    IEC 60 068-2-14

    Test Na BS 2011

    DIN 40046,Test Na

    JESD22-A101-A

    Options Accessories:

    Independent sensors for protection (NE60519-2.1993)
    1 Entry port Φ100mm
    Nitrogen gas auxiliary device
    Spare parts package
    E-management and cyber-software
    Video monitor system
    APP for mobility management
