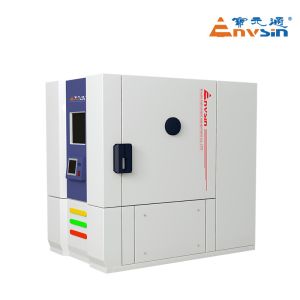

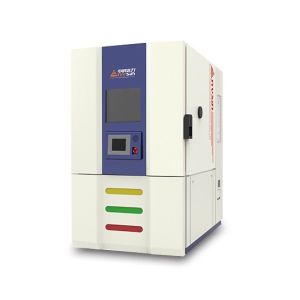

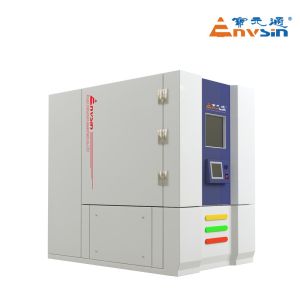

Test Space | 335L |
Internal size | 800*650*650mm(W×D×H) |
External size | 1800mm*2500mm*2300mm (W*D*H)
|
Power supply | AC380V±10%,50Hz±1 four wire three phase+ earth
wire(3/N/PE),Earthing resistance＜4Ω |
Max. Power | 65KW |
Max. Currency | 110A |
Cooling Method | Water-Cooled |
System structure | Three part structure:immobile independent test area.Preheating
area. Precooling area |
Installation Site | - No strong electromagnetic radiation source nearby
- Close to drainage system ( within 2 meters to refrigeration
unit,for condensate water)
- The ground bearing capacity not less than 20000kg/m2
- Prepare proper power supply and water supply
- If need water or gas supply, should be equipped with in advance
- Ambient Temp: 5℃~25℃suggested, 25℃~35℃ function well;(for
air-cooled model);5℃～40℃ function well (for water-cooled model)
- Ambient Humid:≤85%RH；
- Ambient Pressure:86KPa～106KPa;
- Installation space assurances, as following
 A:100cm B:80cm C:150cm D:80cm E:60cm |
|
Cooling water | Water Temp:5℃≤Water Temp≤28℃ reach all technical index,
28℃<Water Temp≤33℃ function well(cooling time will change); Water source Temp ≤10℃,need to prevent condensate water arise |
Water flow:≥15 ton/h |
Pipe diameter:G2.5 inches ×2 |
hydraulic pressure:0.3MPa～0.6MPa |
Hydraulic Pressure Difference:≥0.2MPa |
Water quality requirement:GB50050-1995 |
Air compression | Compressed air supply pressure:0.6MPa～0.7MPa Humidity of compressed air under Pneumatic use:≤30g/m³ Humidity of compressed air under dry air use:≤1.5g/m³ |
Specifications:
Working chamber temp shock test parameter | Thermal Shock Test Chambers--S2: - Low-temp shock range:﹣55℃～﹣10℃
- High-temp shock range:+60℃～+150℃
Low-High+Room Temperature Shock Test Chamber-S3: - Low-temp shock range:﹣65℃～﹣10℃
- High-temp shock range: +60℃～+150℃
- PAMP Environmental Stress Screening
- Low Temp. Range:﹣55℃～﹣10℃
- High Temp. Range: +60℃～+125℃
- Temp. Gradient:3～30℃/min
- Temp. Fluctuation:±0.1℃～±1.0℃
- Temp. Uniformity:±0.5℃～±2.0℃
- Temp Deviation:＜±2℃
| Note: 1.Testing with no load, meeting GB/T5170-2008, if no other special
notice.
2.Temp. range in 0℃～+60℃, setting Shock temp. and RAMP
Environmental Stress Screening function are disapprove.
3. Air cooled test chamber test data at Ambient Temp. 25℃, good
ventilation condition;35℃≥RT＞25℃ function well; low temp range,
cooling rate and thermal load capacity will be affected by the
changeable environment temperature.
4.Water cooled test chamber test data at water temp ≤28℃, Hydraulic
pressure 0.3MPa～0.6Mpa, Hydraulic Pressure Difference≥0.2Mpa |
Preheat temp. | Temp. SV: +50℃～+220℃ Temp rise time: RT→＋220℃ 50min |
Precool temp. | Temp. PV:﹣75℃～+70℃ Temp. reduction time: RT-75℃ 60min |
Temp. recovery time | ＜15min(measure in air outlet) |
Test standard
| Experiment standard-S2: GB/T2423.22 MIL STD 202F, method 107G IEC 60068-2-14, Test Na BS 2011 DIN 40046, Test Na JESD22-A101-A | Experiment standard-S3: GJB 150.5-1986 MIL STD 883H MIL STD 202G IEC 60068-2-14 JIS C 60068-2-14 JASO D 014–4 EIA JED-2531A |
Environmental Stress Screening Test Standard: IEC 60749-25(JESD22-A104D) IEC 60068-2-14NB(JIS C0025NB) IEC 61747-5(EIA JED-2531A) JESD22-A105-B IPC-9701 SAE-J1211 |

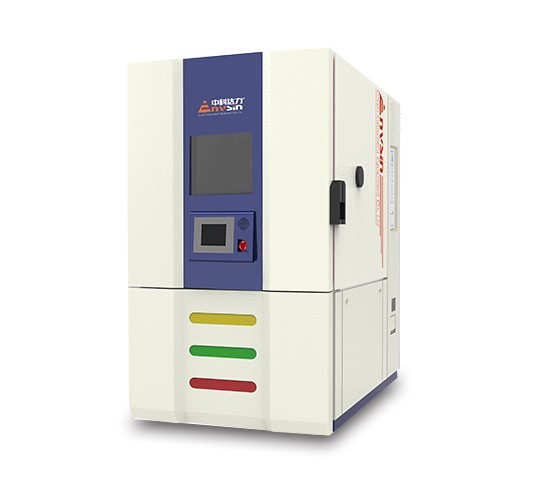

1.Chamber door | 2.Observation window | 3. Control Pad | 4. Preheat area | 5. Working Lights | 6. Cable port | | 7. Precooling area | 8.Extensional control pad | 9.Power distribution board | 10.Refrigeration unit room |
|
