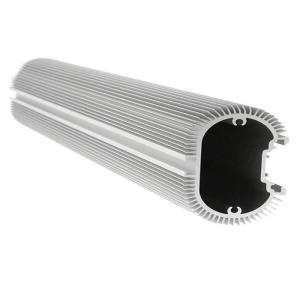

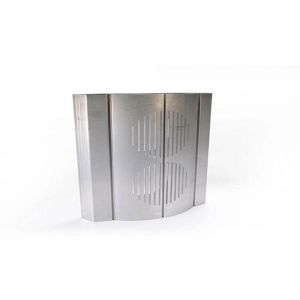

Aluminum Profiles Aluminum Dovetail Extrusion Profile Aluminum
Dovetail Extrusion
1,Description:
Structure of anodic oxide film Anodic oxide film consists of two
layers, the outer layer is called porous layer, which is thicker,
loose and porous with low resistance. The inner layer is called the
barrier layer (also called active layer), which is thin, dense and
of high resistance. The porous outer layer grows on top of the
dense inner layer that has dielectric properties.Overall, the
anodic oxide film is a column of hexagonal cylinders, each of which
should be a solution-filled star-shaped holes, shaped like a
honeycomb structure, the thickness of the pore wall is twice the
diameter of the pore.
(1) Blocking layer The blocking layer is composed of anhydrous
AI2O3, thin and dense, with high hardness and prevent the current
through the role.
(2) The porous outer oxide film consists mainly of amorphous AI2O3
and a small amount of r-AI2O3.H2O also contains anions from the
electrolyte.
2,Applications:
Consumer Goods
Unique architectural decoration and styling
Dedicated heat sinks for advanced cooling systems
Custom frames for solar panels and renewable energy systems
Custom railing and construction project support
Innovative design of consumer electronics enclosures
Customization is invaluable to industries seeking to optimize
product design to improve performance, durability or cost
effectiveness. It supports a wide range of applications from simple
to complex profiles, providing solutions not available with
standard extrusions.
Custom channels and tracks for industrial machinery
3,Specifications:
| Product | Aluminium Extrusion Parts |
| Material | AL2024, AL5052, AL6061, AL6063, AL7050, and AL7075 |
| Color | Green, Grey, Black, White, (RAL series)etc. |
| Surface treatment | Mill finish, anodized, electrophoretic coating, powder coating,
thermal break, wood grain/wood-in-shift, etc. |
| Lead Time | 1-2 weeks for sample,2-5 weeks for bulk order |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
4,Feature Advantage:
Recyclability:Aluminum is 100% recyclable and retains its
properties during the recycling process, making it valuable from
both an economic and environmental perspective.
5,About us
Q&A
Q-1. Why is extruded aluminum the preferred choice?
Aluminum is preferred due to its lightweight, strength, and
corrosion resistance, making it an ideal choice for various
applications.
Q-2. Can aluminum extrusions be recycled?
Yes! Aluminum profiles have a high level of recyclability, which
contributes to environmental sustainability.
Q-3. Is the aluminum profile cost-effective?
Given its durability and the efficiency of the extrusion process,
aluminum extrusions are an economical solution for many projects.
Q-4. How does the strength of aluminum extrusions compare to that
of steel?
Although steel is generally more durable, aluminum extrusions have
a better strength-to-weight ratio. Therefore, it is very suitable
for applications that prioritize weight.
Q-5. Can aluminum extrusions be customized?
Yes! One of the main advantages of aluminum extrusion is the
ability to create custom profiles for specific applications.
Question 6: Are there any limitations to using aluminum extrusions?
While versatile, aluminum extrusions may not be suitable for
applications with extremely high stress levels if the appropriate
alloy selection and design considerations are not made.
