Product Description:

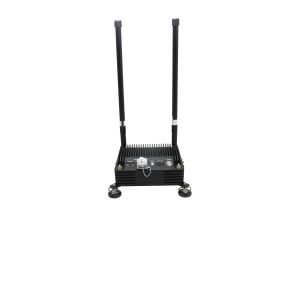

MANET9301 is a high-power radio utilizing an FPGA solution,
supporting FHSS(Frequency Hopping Spread Sprectrum) and IFS
(Intelligent frequency selection). It has the capability to
automatically select the optimal frequency in the presence of
electromagnetic interference, enabling broadband service
transmission in complex scenarios through self-organizing networks.
The device is designed with professional shock absorption features,
making it easy to install on vehicles, ships, and aircraft. It can
be easily powered on with a single button press, without the need
for configuration or parameter changes.
Features:
◆Data rate up to 56Mbps
◆Supports two-way voice intercom
◆Supports WIFI
◆Supports GPS/BD
◆Supports HDMI input
◆Supports IP data transparent transmission
◆Easy operation
Technical Parameters:
Dimensions:
Panel Description:
1-WIFI antenna interface
2-LAN/DATA Interface
3-HDMI Interface
4-MESH signal indicator
5-Power input port
6-Power push button
7-GPS antenna interface
8-MESH antenna Interface -1
9-MESH antenna Interface -2
Product Advantage:
◆Mobile deployment:
Can be used on car, ship or drone/airplane, fulfill the wireless
communication need of Mesh Manet network needs on land, water or
air area.
◆High Reliability:
With special navigation interfaces, shock absorption design, strong
vibration resistance, safe power supply, and strictly meet the
requirements of the vibration resistance part of mobile
transportation.
◆Flexible Networking:
No central distributed networking, flexible carrier bandwidth
configuration, supports various network topologies such as
point-to-point, chain, star, mesh, mixed dynamic, etc.
◆Powerful Adaptivity:
Built-in H.265 encoder adjusts video bitrate, resolution, and frame
rate adaptively based on channel bandwidth to ensure the continuity
and smoothness of video transmission services.
◆Intelligent Routing:
Devices can move quickly and network topology can be updated
accordingly with dynamic route reconstruction in real-time without
affecting overall system communication.
◆Anti-interference:
Wideband carrier frequency hopping (optional) effectively enhances
anti-interference capabilities. Additionally, it supports
intelligent frequency selection (optional) mode where devices can
intelligently choose interference-free frequencies for network
transmission to avoid interference. It also utilizes ARQ error
control transmission mechanism to reduce data loss rates and
improve data transmission reliability.
◆Full IP Interconnection:
With Fully IP-based design, it supports various data transmissions
for seamless integration with heterogeneous communication systems.
◆Secure Encryption:
It has independently developed system with custom transmission
protocols and 64-bit key for air interface transmission encryption.
It can dynamically generate scrambling sequences for channel
encryption. The system also supports DES56/AES128/AES256 source
encryption to enhance security.
◆Easy Operation:
Built-in Wi-Fi communication module allows mobile devices, laptops,
or PADs to access and control without the need for wired
connections, making user management and maintenance convenient.
◆GIS Services:
With built-in BD/GPS, it supports real-time display of geographical
location and latitude/longitude positioning information through. It
can measure distances between individual radio stations and track
the continuous position of selected radio station groups.
Application Scenario:
