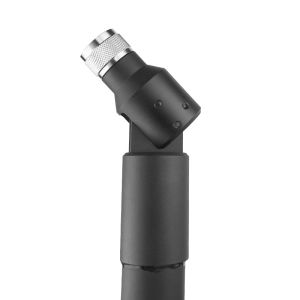

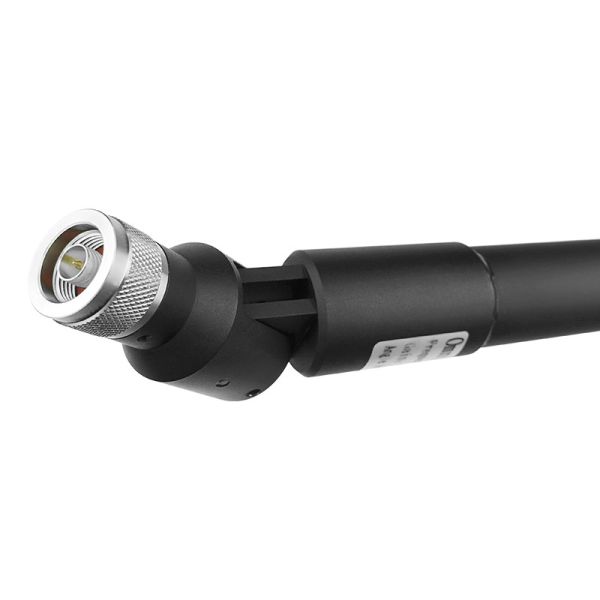

    Collapsible Fiberglass Antenna 3G 4G WIFI 5G 8dBi Communication Antenna

    Ask Lasest Price
    Brand Name : Texin
    Model Number : TX00-2425-8Q15VBLG
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000per month
    Delivery Time : 5-8
    • Product Details
    • Company Profile

    Collapsible Fiberglass Antenna 3G 4G WIFI 5G 8dBi Communication Antenna

    Factory price collapsible fiberglass antenna 3G 4G WIFI 5G 8dBi communication antenna
    product Introduction
    This is a unique design in which the bottom has a folding switch that you operate can adjust directional anywhere ,and when installed in device the folding switch can form a protection for the device .High gain 8dBi makes the signal steady emit .It is directly sold by manufacturer so that the power and frequency band can be customized .It is suitable for communication field ,fiberglass material waterpoof ,windproof ,anti shocked ,no matter use at home or outdoors there was no influence at all .

    Electrical Specifications
    Frequency Range2350-2550MHz
    Gain(dBi)8±1dBi
    VSWR≤1.5
    PolarizationVertical
    Horizontal Beam width(0º)360º
    Vertical Beam width(0º)45º
    Ovality(dB)≤±2dB
    Input Impedance(Ω)50Ω
    Maximum input power(W)100W
    Input connector typeN-J
    Lightning ProtectionDC Ground
    Mechanical Specifications
    Dimensions­mm(Height/Width/Depth)ɸ35*693mm
    Antenna weight(kg)0.45KG
    Rated Wind Velocity(m/s)60m/s
    Operational Humidity(%)10- 95
    Ra dome ColorBlack
    Ra dome materialglassed steel
    Operating temperature(ºC)-40~55 º
    Installation Method

    Machine installation








    Features

    • Fiberglass material anti shocked ,waterproof ,Anti-fall
    • 8dBi 100W high gain and high power operate
    • Widely use in many places such as school,government ,entertainment venues
    • Factory produced that can be ordered in bulk
    • It is a communication antenna that can intefere drone signal
    • N-Female connector is maintain stable signal transmission and electrical connection in various harsh environments

    ​FAQ

    Do you have the self development capacity to design the new and creative anti drone solution?

    yes, TeXin is with the key know-how and thousands of project experience to offer a new anti drone solution from shape to inside design according to customer specific need.

    How many assemblies you have in your factory ?

    TeXin factory has over 9 assemblies in our over 5000sqm 2 floor factory in Long area, Shenzhen city.

    Do you have the engineer for the technical support when you are making the after sales service ?

    TeXin engineer team can directly offer the customers with the techinical support online anytime customer need it.

    How can i be a your distributor in our own country ?

    For the TeXin distribution authorization,we can definitely offer it for some customer after the details negotiation, it depends on the real situation of each side.
