    Donjoy Multi Port 3 Way Sanitary Diaphragm Valve 1/4 Inch

    Ask Lasest Price
    Brand Name : DONJOY
    Model Number : NO. MINI-VGM0S2, NO.T-K
    Certification : CE,3A,FDA
    Price : Negotiation
    Payment Terms : T/T, LC, Credit Card
    • Product Details
    • Company Profile

    Donjoy Multi Port 3 Way Sanitary Diaphragm Valve 1/4 Inch

    Donjoy multi port diapihragm valves/ 3way diaphragm valves
    Multi port diaphragm valves
    Donjoy phamacy diaphragm valves
    Sanitary valves
    Casting diaphragm valves
    Forged diaphargm valve

    Specifications


    Product Name:

    Donjoy multi port diapihragm valves/ 3way diaphragm valves

    Valve Body Material:

    SS316L

    Seal Material:

    Single silicone gasket/ Adhesive PTFE+EPDM/Two pieces
    PTFE+EPDM

    Max Working Pressure:

    10 Bar

    Max.Working Temperature:

    150 degree C

    Material requirement:

    Sanitary level

    Pneumatic actuator:

    Could be selected

    Available size:

    1/4”-3/4”, DN6-DN15

    Available connection:

    Clamp/weld/thread/special connection

    Available standard:

    3A/BPE/DIN/ISO/IDF

    Operated:

    Manual,Pneumatic

    Available structure:

    Straight, tee, U-type, tank bottom

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc


    Packaging Details:

    Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.

    Delivery details:

    Usually within 20 days after receiving T/T down payment.


    Applications
    Manually operated diaphragm valve is specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
    The valve is excellent for flow control as well as for open/close duties.
    The diaphragm valve is better in feature of flow in comparison with other valves. It si eaiser to clean up and better to process the sunstance with particles. The phenomenon of air pocket is rare during application of flow control.

    Valve Body
    Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body dendity higher, the structure is more uniform, no sand hole and other impurities. Then through the processing center carry on the high precision machining.

    Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax modl, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up. Casting size is very accurate, the outward apperance is smmoth, clean and tidy.

    Packaging Details
    Bubble pack for each valve.
    Outside packing are carton or plywood cases.
    Or as per the request of customers.

    Delivery details
    Usually within 20 days after receiving T/T deposit payment.

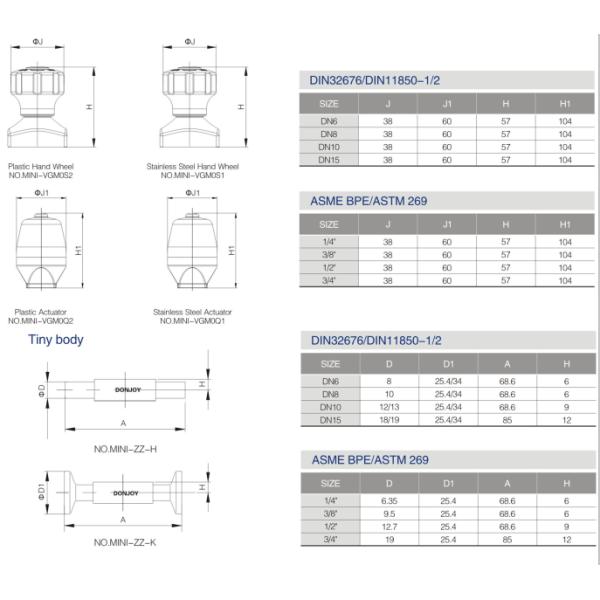

    Size of diaphragm valve


    Relate products:


    Tag : Mini Type diaphragm valve, Sample valve, Donjoy Diaphragm valve
