SMD 1.5 P1.9 P2.6mm 3840Hz Intdoor Rental LED Display For Stage
Background Video Wall
Model Number: P1.5, P1.9, P2.6
1,Double protection:
Modules are made of GOB technology, touchable, anti-scratch;
The four corners of the cabinet anti-collision design to prevent
the collision of light beads in the process of transportation and
disassembly；
2,high compatibility:
The module is not divided into top and bottom, and can be installed
at will；Platform-based setup, one hub for all point spacing；
The embedded module design makes the module thinner and lighter；
The bottom shell is made of high-precision light steel material,
which has the characteristics of light weight, high strength,
corrosion resistance and no deformatio；
3,Extreme display effect
High quality lamp bead, 7680Hz high refresh rate, 1200nits high
brightness, 16bit high contrast, can effectively reduce the flicker
phenomenon of the screen, provide a more smooth visual effect,
restore the best visual experience;
4,Professional Arc lock
Optional -7.5°~10° arc lock, can be combined with internal and
external wave screen, easy to adjust;
The rubber strip on the side of the cabinet can effectively prevent
light leakage and ensure the arc effect；

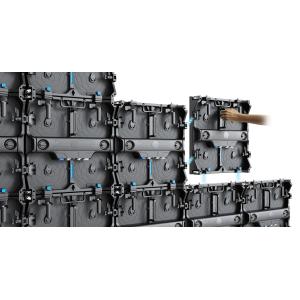

5,One hand operation, 3 seconds to complete the installation
The handle is located in the middle of the cabinet, convenient for
one-hand operation;
The upper and lower lock can be operated with one hand, and it can
be automatically inserted and installed quickly.
Gprime Series Parameters:
| Product | P1.5 | P1.9 | P2.6 |
| Pitch | 1.5625mm | 1.953mm | 2.604mm |
| Density(pixels/m²) | 409600 | 262144 | 147456 |
| LED Type | SMD1010 | SMD1515 | SMD2020 |
| Brightness | 1200nits | 1200nits | 1200nits |
| Scan Method | 1/20 | 1/16 | 1/16 |
| Panel Size | 500×500×72mm |
| Module Size | 250×250×13mm |
| Panel Material | Die-casting Aluminum |
| Panel Weight | 7.45kg |
| Protection Level | IP31 |
| Maintenance | Module Front Service &Rear Service |
| Max Power Consumption | 600W/㎡ |
| Average Power Consumption | 150W/㎡ |
| Refresh Rate | 7680Hz |
| Grey Scale | 13-16bit |
| Viewing Angle | H140°,V140° |
| CurveDegrees(Optional) | ﹣7.5°－﹢10° |
| Voltage | AC100~240V(50-60Hz) |
| Working Temperature | -20℃ to 60℃ |
| Working Humidity | 10%-90%RH |
| Color Temperature | 3000-9500K |
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO |
