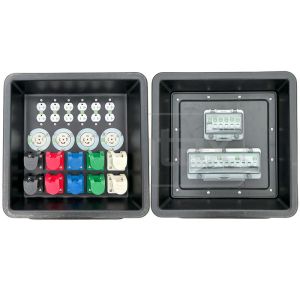

    Syntax MD1 Three Phase 400A HDPE Portable Distribution Box IP67 With UL Listed Nema Sockets 430x380x460mm

    Ask Lasest Price
    Brand Name : Syntax
    Model Number : MD1
    Certification : EN60439-4, IEC60529, SAA
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 3000 sets/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Syntax MD1 Three Phase 400A HDPE Portable Distribution Box IP67 With UL Listed Nema Sockets 430x380x460mm

    Syntax MD1 Three Phase 400A HDPE Portable Distribution Box IP67 With UL Listed Nema Sockets 430x380x460mm

    Technical Parameters:

    AttributeValue
    Box

    MD1 Portable Distribution Board IP67

    Color

    Black

    Dimension of Box

    430*380*460mm

    Incoming

    Main Switch

    1 set of 5P 400A 400V Single Core Connector,
    unprotected.

    Outgoing 1
    Outgoing 1 Breaker

    1 set of 5P 400A 400V Single Core Connector,
    Loop through.

    Outgoing 2
    Outgoing 2 Breaker

    4 x NEMA L21-30FO 30A 120/208V,

    protected by 4 x 4P 32A MCBs.

    Outgoing 3
    Outgoing 3 Breaker

    6 x NEMA 5-20R 20A 125V,

    protected by 6 x 1P 20A MCBs.

    Brands

    Distribution Box by Syntax

    Industrial Plugs & Sockets by PowerSyntax
    Breakers by Siemens.


    Drawing:


    Dimension Drawing of Empty Box:


    Features and Benefits:
    • Design based on EN 60439-4, IEC 60529.
    • Waterproof and Shockproof design, IP rating up to IP67.
    • Color: Black, Orange and Yellow are available.
    • Material: HDPE / PE (polyethylene, a kind of plastic).
    • Stackable Design for easier storage and steady body.
    • Operating Temperature:-20℃~+75℃.
    • Dimension: 430mm x 380mm x 460mm.

    The Advantages of Our Distribution Boxes:
    • Quick assembly/dismantling.
    • Safe connections.
    • Reliable in operation.
    • Reusability of all components.
    • Suitable for indoor or outdoor use.
    • Robust distributor.
    • Easy handling of distribution boxes and of the entire system.
    • Integrated feet to facilitate stacking.
    • 24 Months Warranty on all Parts and Manufacturing Defects.

    Specification:
    This three phase 400 Amp portable socket box outdoors is specially bespoke for stage temporary power box in America. The incoming 400A connector set of 5 is unprotected, and the outgoing 400A connectors set of 5 is loop through, and all outgoing NEMA sockets are protected by MCBs. The boxes is made in PE and IP67 Waterproof, which is perfect for the sports events especially for swimming match. We can bespoke power distro boxes built to order.
    Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. We provide the portable power distribution solution!
    Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.
    The MD series IP67 Weather Protected 3 Phase Power Distribution Box from Syntax offers excellent electric power distributing and safety to work alongside your generator. The best value in market, our distribution boards offer the ultimate in portable power distribution.
    The Syntax units offering excellent circuit protection using MCB, RCD, RCCB or RCBO breakers, you can be rest assured you and your workforce remain as safe as possible whilst using our equipment.
    The design of the plastic CEE socket box can be customized as per your requirement and specification, we have CNC perforating machines for cutting the holes for installing any devices onto the box. Because we have an experienced and professional electrician team for the installation of the box, we can pre-wire the plugs & sockets, circuit breakers and other electric devices before delivering to you.
    We can also use our IP67 waterproof lockable hinged windows to prevent the electrical devices like circuit breakers, signal lamps, push buttons and etc. from water, rain, and dust.
    Remarks for the PE material: the PE material is heavy duty, hard, strong and tough. The box is hard to be crack, PE material has the closest performance as rubber material. Both of them are the hardest material of plastic.
    Applications:
    • Tunnel construction
    • Drilling rigs
    • Gravel pits
    • Marine
    • Railway
    • Military
    • Industry
    • Construction site
    • Event technology
    • Strip mining
    • Chemistry
    • Airports
    • Quarries
    • Container terminals and crane connections in harbors
    • For versatile power supply at large-scale indoor and outdoor events
    • Power supply for market places
    Customized Solutions:
    If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.
    Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:
    • Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
    • Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
    • Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
    • Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
    • Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
    • Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
    • Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
