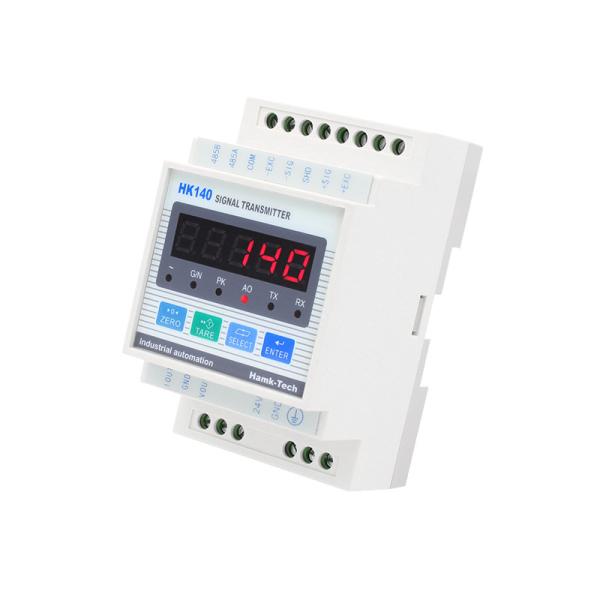

DIN Rail Mountable Load Cell Sensor Amplifier Transmitter Multiple
Analog Signal Outputs And RS485 Com Port -(HK140 LED)
Product Description:
DIN Rail Mountable Load Cell Sensor Amplifier Transmitter Multiple
Analog Signal Outputs And RS485 Com Port - HK140 LED
The HK140 signal transmitter, with RS485 communication interface,
supports Modbus RTU protocol, and a variety of analog signals are
optional. And it standard with 35mm guide rail installation, small
size, easy to operation and easy to set. In addition, LED and OLED
display are optional, Chinese and English menu, friendly
man-machine interface. It is suitable for various static weighing
control systems and low-speed force measurement systems.
Features:
- DIN-rail installation, small size
- AD acquisition 120 times/sec, strong anti-interference performance
- LED and OLED display versions optional
- Communication interface: RS485 support Modbus RTU protocol
(customizable output protocol)
- Analog output:0~5V, 0~10V, -5V~+5V, -10V~+10V, 0~20 mA, 4-20mA,
0-24mA
- Application areas:
- Various static weighing control systems, e.g. for mixing plants,
non-explosion-proof chemical and pharmaceutical reactor weighing
control systems
- Various low speed force measurement control systems, e.g. static
presses, process force control in the automotive industry
Technical Parameters:
| Display | 5-digit red digital tube, height 0.32 ", LED display |
|---|
| Display Resolution | 99,999 |
|---|
| Weighing Platform | 1pc analog platform |
|---|
| Min. input Interval | 0.6μV/d |
|---|
| Input Load | Drive up to 1～4 load cells (350Ω) |
|---|
| Analog Output | 0~5V,0~10V,－5V～＋5V,－10V～＋10V, 0~20mA,4～20mA,0～24mA |
|---|
| Communication Port | RS-485, Baud Rate4800-19,200 |
|---|
| Com. Protocol | Continue type,MODBUS-RTU |
|---|
| A/D Conversion Rate | 200Hz |
|---|
| Excitation Voltage | 5VDC |
|---|
| Power Supply | 24VDC (±10%), power <3W |
|---|
| Keyboard | 4 touch buttons |
|---|
| Operation Temp Range | -10°~ 40°C (14°~ 104 °F); Humidity: 10% ~ 95%; non-condensing |
|---|
| Dimension (L*W*H) | 52mm×86.8mm×57.9mm |
|---|
| Material | Plastic housing |
|---|
| IP Class | IP20 |
|---|
Screen & Keyboard:
Interface:
Dimension: (Unit: mm)
