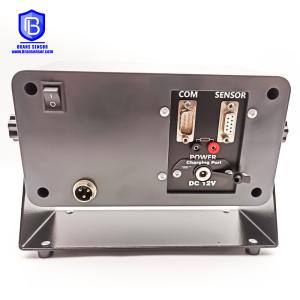

LCD Screen Weighing Indicator Digital Weight Indicator 9 Pin D Type Socket

Add to Cart

Digital LCD Screen Weighing Indicator With RS232 Interface(H7000)

Testing interface:

Key Features:

Equipped with bridge circuit input resistance, output resistance, cross resistance and sensitivity measurement, sensor insulation resistance
Using 5-inch high-definition IPS LCD capacitive touch screen
Touch keyboard data input; quick and convenient parameter setting
Icon-style buttons, intuitive and simple operation
With resistance input calibration, sensitivity input calibration, engineering value calibration functions, parameters are not lost when power off.
Isolated RS232 communication interface
Directly connected with computer, PLC, touch screen
Built-in synchronous digital self-calibration function

Datasheet:

MODEL	UNIT	SPECIFICATIONS
Combined Accuracy Class		1/1000000
Full Bridge	OHM	8pcs 350Ω load cells
Sensitivity Range	mV/V	±5.2
Resistance Range	Ω	0-2 kΩ(Max5kΩ)
Isolation Resistance Range	M	0-6000MΩ
Maximum Resolution of the signal	Bits	24bit(50Hz)
A/D Conversion Speed	Hz(times/sec.)	Highest 4800 (18bit)
Speed of Output	Hz	400,200,120,50,25,12.5,7.5
Cutoff Frequency of Digital Filtering	Hz	120,40,18,8,4,2,1,0.5,0.25
Bridge excitation voltage	v	±5V
Cable from Indicator to Load cells	m	<=50
Fully Electrically Isolated RS232 Cable Length	m	<=15
Linearity	%	±0.0007
Temperature effect by 10 oC	ppm/10 ℃	10 ppm/10℃ 15 ppm/10 ℃
Communication Interface		Isolated RS232
Communication Protocol		Modbus Protocol (03/06 Commands can be directly connected to the touch screen)
PC software (all parameters can be set)		Options
Correction Points		10 setting points(customizable)
Option for baud rate		9600 to 115200
Current consumption	mA	200
Operation Temperature	℃	20...+60
Stocking Temperature	℃	-30...+85
Dimension (LWH)	mm	200×100×80

Indicator wiring:

Product Tags:

LCD Screen Weighing Indicator
