Strain Gauge Load Cell Sensor Single Point Weight Sensor Load Cell High Precision

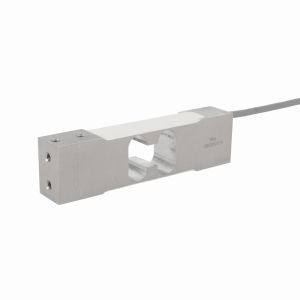

Strain Gauge Off Center Load Cell High Accuracy Single Point Load Cell -WL116

Features:
Single point load cell WL-116 is made of stainless steel based on strain gauge technology to deliver maximum 0.0166% non-linearity of full scale, offered in 5kg / 10kg / 20kg / 30kg / 50kg / 100kg / 200kg rated capacities to choose from. Load cell sensor WL-116 is sealed to IP67 and comes with a 4-core shielded cable in 4m length, weight transducer WL-116 is temperature compensated and corner trimmed for platform sizes up to 600x500mm, which makes sensor WL-116 suitable for off-center load measurement in a wide temperature range. You may find model WL-116 applicable for applications such as platform scales, food packaging machines and so on.

Dimensions (in mm):

BRANS is a certified manufacturer of high-precision measurement technologies, specializing in force sensors, load cells, torque sensors, multi-axis sensors, and data acquisition systems. Our ISO 9001-certified solutions serve diverse industries with reliable measurement instruments and custom engineering expertise.

We combine precision engineering with robust software solutions, delivering faster, more accurate measurements with superior noise immunity. BRANS empowers innovation across industries - helping customers create cleaner, healthier, and more productive technologies through reliable measurement.

Core Competencies:​

Micro-force sensors & high-precision load cells

Multi-axis force/torque measurement

Custom non-standard solutions

Advanced data acquisition systems (digital transmitters, controllers, multi-channel devices)
