Customized Request Object Small Scale Horizontal Bead Mill for Solvent Paint Production

DEGOLD ZM series horizontal bead mill is a kind of wet-grinding machine to dispersing low, medium and high viscosity materials. The special designed dispersion discs, appropriate grinding bead, and the functional mechanical seals ensure the effective of the DEGOLD ZM series horizontal bead mill. Customers can choose the diameter of the bead, the material of the dispersing shaft, dispersing discs to improve the quality of your products. We have many models, and the effective volume from 0.3L to 250L. In a word, we will choose the best one for you according to your producing formulation.
Small Scale Horizontal Bead Mill for Solvent Paint

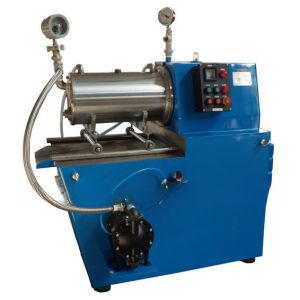

ZM15DB2210 horizontal bead mill

1) 15 Liters,
2) Suitable for zirconia grinding beads,
3) Mechanical seal,
4) Ex proof
5) Hard alloy griniding chamber and grinding discs,
6) Double-diaphragm fluid transfer pump,
7) Without AC drive to control grinding shaft rotary speeds.

Small Scale Horizontal Bead Mill for Solvent Paint

There are the others construction ways and materials for 15 liters, please contact with us to get suitable model for your productions. Thanks.

Production Line:
Small Scale Horizontal Bead Mill for Solvent Paint
Technical Data Sheet:
ZM15DB2210
Effective grinding chamber volume (L)15
Main motor power (kW)15
Grinding medium load (L)About 85% of the grinding chamber volume
Materials inlet/outlet pipes diameterG1
Cooling water inlet/outlet pipes diameterG3/4
Pump pressure (MPa)0.7MPa
Compressed air consumption (m3/min)0.3
Dimension (L*W*H)mm1560×1050×1550
Net weight (kg)800

Small Scale Horizontal Bead Mill for Solvent Paint
