5L Horizontal Sand Mill for Paints and Inks ZM5 Series Wet Grinding Capability

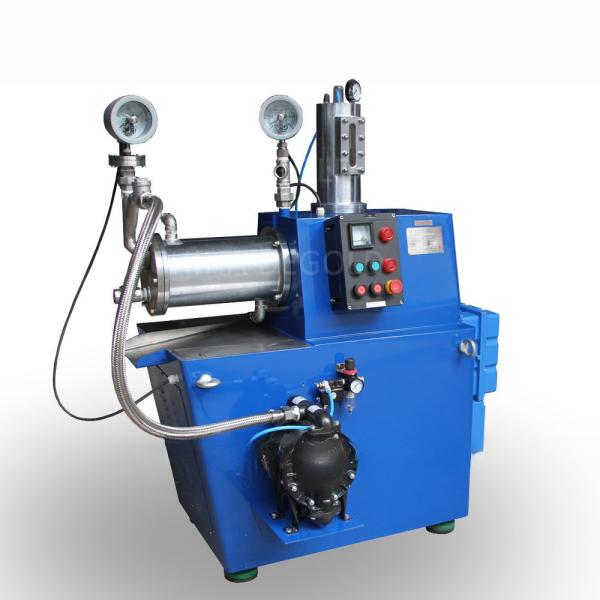

5litres Horizontal Sand Mill for Paints and Inks (ZM5 Series)
DEGOLD ZM series horizontal bead mill is a kind of wet-grinding machine to dispersing low, medium and high viscosity materials. The special designed dispersion discs, appropriate grinding bead, and the functional mechanical seals ensure the effective of the DEGOLD ZM series horizontal bead mill.

Customers can choose the diameter of the bead, the material of the dispersing shaft, dispersing discs to improve the quality of your products. We have many models, and the effective volume from 0.3L to 250L. In a word, we will choose the best one for you according to your producing formulation.

Application:
1. Painting;
2. Light sensitive material;
3. Dye;
4. Some food producing department;
5. Distemper;
6. Non-metal mines
7. E-ink;
8. Printing ink
5litres Horizontal Sand Mill for Paints and Inks (ZM5 Series)

Characteristics:
1. Horizontal closed;
2. High effective;
3. Easy to operating and cleaning;
4. Different geometry dispersion discs;
5. Many different volumes for your choice;
6. Abrasion-resistance materials
7. Single mechanical and double mechanical design;
8. Sensitive inductive thermometer to ensure the safety;
9. Dynamitic outlet of the material.

Note:
1. B: Means complete explosion proof type, ordinary ex-proof type is not marked.
2. "D" means single end plane mechanical seal; "S" means double end plane mechanical seal.
3. "ZM" is code of ZM series horizontal enclosed bead mill.

Following the explosive standard and our completely ex-proof products are made according to the standard strictly.
GB3836.1-2000 Electrical Equipment for Explosive Gas Atmosphere Part 1: General Requirements;
GB3836.2-2000 Electrical Equipment for Explosive Gas Atmosphere Part 2: Exd "d";
GB3836.3-2000 Electrical Equipment for Explosive Gas Atmosphere Part 3: Exe "e";
GB3836.9-2006 Electrical Equipment for Explosive Gas Atmosphere Part 9: Exm "m";

ZM5DB is completely explosion-proof type and the output is about 100kg/h. It is suitable for small batch production, and if you want to large scale production, we also have another machines for you. Please see the other types of ZM series horizontal bead mill in our showroom.

5litres Horizontal Sand Mill for Paints and Inks (ZM5 Series)

5 Litres horizontal bead mill Technical Data Sheet:

Model ParameterZM5SZM5DZM5SBZM5DB
Effective cylinder volume (L)5555
Main motor power (KW)7.5/117.5/117.5/117.5/11
Grinding medium load (L)About 85% of the cylinder volume
Materials in/outlet pipe diameterG3/4G3/4G3/4G3/4
Cooling water in/outlet pipe diameterG3/4G3/4G3/4G3/4
Pump pressure0.7MPa
Compressed air consumption(m 3 /min)0.2

Paints & Inks Production Line:
5litres Horizontal Sand Mill for Paints and Inks (ZM5 Series)


Exhibition:
5litres Horizontal Sand Mill for Paints and Inks (ZM5 Series)
5litres Horizontal Sand Mill for Paints and Inks (ZM5 Series)
