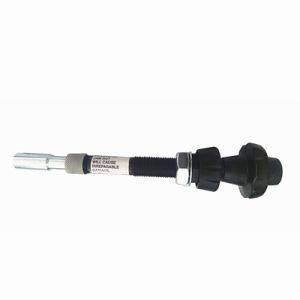

Micro Adjust Push-Pull Control Head Micro Adjustment Control Head

Micro Adjust Push-Pull Control Head Micro Adjustment Control Head

【 Product Description 】

Micro adjustment control heads are specialized components that allows for precise and fine adjustments in various systems and equipment. These control heads are designed to enable users to make small incremental changes in settings or parameters, providing accurate control over different functions.

Micro adjustment control heads are ideal for remote operation of a throttle, regulating valve, or other applications needing precise adjustment capabilities. Depressing the center button allows pushing or pulling the knob to make course travel adjustments. A flexible dust seal protects the internal release mechanism. Rotating the knob clockwise extends the output in the finite mode, and counter-clockwise retracts. Four and one-half turns results in 1" of linear travel. The maximum recommended load is 20lbs. Normal vibration does not affect the micro adjust setting. An optional friction lock accessory is available for applications where vibration is excessive. A disconnect feature and various output end configurations are available to suit a particular application.

【 Common Applications 】

Throttle control, regulating valve

• Depressing the center button allows pushing or pulling the knob to make course travel adjustments

• Flexible dust seal protects internal release mechanism

• Rotating the knob clockwise extends the output in the finite mode, and counter-clockwise retracts

• Four and one-half turns results in 1” of linear travel

• Normal vibration does not affect the micro adjust setting

【 Materials 】

• Stainless Steel or Plated Carbon Steel

• Plastic Coated Carbon Steel Conduit and Innermember

• Plastic Seal

• Plastic Knob

【 Features】

【 Function】

Stepless self-locking,rotatable handle,connected with a piece of cable.

【 Selection Table】

【 Drawing】

【 Other Related Products】

【 Real Picture 】

【 Our Services 】

If you are interested in our products,please tell us which model,quality you want to order.
A performa invoice will be made for your order.
We will deliver the product ASAP when we receive your payment.

Please contact us without hesitation, we are pleased to welcome to you!!!
