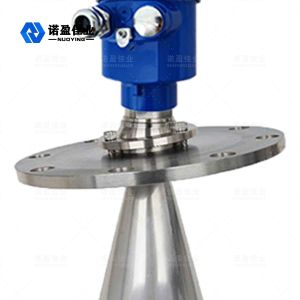

6.8GHz Anti-explosion 4-20mA Radar Level Sensor/Transmitter with 35m Range to Measure Solid Material and Grain Warehouse

6.8GHz Anti-explosion 4-20mA Radar Level Sensor/Transmitter with 35m Range to Measure Solid Material and Grain Warehouse

6.8GHz Radar Level Transmitter Working Principle

Input:

The antenna receives the reflected micro pulse and transmits it to the electronic circuit. The microprocessor processes the signal and identifies the echo generated by the micro pulse on the material surface. The correct echo signal recognition is completed by pulse software, and the accuracy can reach millimeter level. The distance D from the material surface is proportional to the pulse time travel T: D=C×T/2(C is the speed of light)

Since the distance E of the empty tank is known, the material level L is: L=E-D.

Output:

It is set by inputting empty tank height E (= zero point), full tank height F (= full scale) and some application parameters. The application parameters will automatically adapt the instrument to the measurement environment, corresponding to 4-20mA output.

6.8GHz Radar Level Transmitter Application Fields

1. Foodstuffs: Juice factory, milk factory, brewery storage tank, etc.

2. Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.

3. Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.

4. Paper: Storage tower, chemical material storage silo, etc.

5. Other: Quarry, environmental protection, shipbuilding and other industries.

6.8GHz Radar Level Transmitter Technical Parameters

6.8GHz Radar Level Transmitter Related Pictures

Company Introduction

 Xi'an Dehou Electronic Technology Co., Ltd. is a high-tech enterprise specializing in research and development, production, sales of industrial automation instruments and providing Internet of Things solutions.

At present, the company has obtained more than 100 patents and more than 20 soft patents. It has passed IS09001 quality management, IS014001 environmental management, IS045001 Occupational Health and safety management, Occupational Health and Safety Management, GBT29490 Intellectual Property Management, military standard, information security and other system certification and EU CE certification, Russian EAC certification, ATEX explosion-proof certification and SIL certification and other qualifications.

The company is committed to the system integration of process measurement, control, management and other aspects of the system and the development, development, production, sales and service of intelligent instruments and instruments of the Internet of Things.At present, it has metering level FM radar level, pulse radar level, radio frequency guide level, liquid level of magnetover, magnetoexpansion level, sound fork density (level), pressure, flow, multi-point thermometer, analysis, system and tank area meter.The products are widely used in petrochemical industry, coal chemical industry, metallurgy, electric power, building materials, food and medicine and environmental protection water treatment and other industries.

The company can provide customers with location, pressure, temperature, flow, measurement requirements of analytical instruments and cooperation of the Internet of T scheme.
