    Portable Voltage Switch Loop Resistance Tester with Customization Options

    Ask Lasest Price
    Brand Name : XZH TEST
    Model Number : XHHL3200SC
    Certification : ISO, CE
    Payment Terms : T/T,
    Supply Ability : 1000 Pieces /Year
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

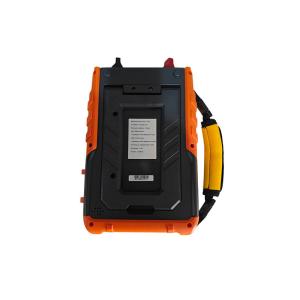

    Portable Voltage Switch Loop Resistance Tester with Customization Options

    Handheld 200​A contact resistance tester XHHL3200SC


    The loop resistance tester, also known as the micro-ohmmeter and contact resistance tester, is an instrument developed by our company for measuring various high-voltage switches, high-voltage circuit breakers, metal welding components, metal conductor loop resistance, and precision micro-ohm resistance.


    1. This instrument has a built-in large-capacity rechargeable lithium battery to generate ripple-free DC current, with a maximum output of 220A. The output current can be fine-tuned in 2.5A steps, with up to 87 current gears, which can meet the test of multiple current gears;
    2. At the same time, the time (10s, 20s, 30s, 40s, 50s, 60s) can be set to continuously output large current tests, and high-precision, high-stability, and high-intelligence tests can still be performed in a strong interference environment;
    3. It has open circuit protection, overheating protection and other functions.
    4. The instrument uses a 5.6-inch color LCD display and an English operation interface.
    5. The standard resistance of the system can be self-checked before the formal test to ensure accuracy.
    6. Wide range, large data storage capacity, strong anti-interference ability, simple operation, handheld, and easy to carry. An optional printer is also available for data printing.


    FunctionContact resistance tests of high-voltage switches and circuit breakers; connection resistance tests of metallic welding components; circuit resistance tests of conductors; precise low resistance tests.
    PowerBuilt-in 12.6V 9000mAh rechargeable lithium battery
    Measurement Method4-wire measurement
    Charger12.6V/2A
    Display5.6-inch industrial LCD with high-brightness color
    Test InterfaceI+, I-, U+, U-
    Output Current5A, 10A, 30A, 50A, 80A, 100A, 200A, 220A
    Step Current: 2.5A, up to 87 current gears.
    Measurement Range
    ≤5A :1μΩ~3500mΩ
    10A :0.1μΩ~200mΩ
    30A:0.1μΩ~20mΩ
    50A:0.01μΩ~15mΩ
    80A:0.01μΩ~10mΩ
    100A:0.01μΩ~5mΩ
    200A :0.01μΩ~600uΩ
    220A :0.01μΩ~500uΩ
    Resolution0.01μΩ
    Accuracy30A~220A
    ±(reading*0.1%+measurement range*0.2%+1μΩ)
    10A or less than 5A
    ±(reading*0.5%+measurement range*0.2%+10μΩ)
    Measurement Time≤100A:fast mode(recommend),10s, 20s, 30s, 40s,50s, 60s
    >100A:fast mode
    PrinterOptional, press the print button to print the test results
    Data StorageAfter the completion of the test, the data is automatically and cyclically saved with up to 999 sets of data stored.
    Size of the instrumentL188mm×W85mm×H312mm
    Size of Outer PackageAppro L550mm×W420mm×H215mm
    Test LeadsWeight of the instrument: appro 2.2kg
    Total Weight: appro 9.3kg
    Test LeadsStandard Length: 3m (5m is optional)
    Connecting the test leads to the current port and voltage port with a resistance of less than 10mΩ
    Safety StandardIEC61010-1, CAT 600V,Pollution Level 2, JJG724-1991 Verification Regulation of DC Digital Ohmmeter, JJG166-1993 Verification Regulation of DC Resistors, DL/T967-2005Verification regulation of loop resistance tester and DC resistance high-speed tester.



    200A Handheld High-Voltage Switch Loop Resistance Tester with Rechargeable Battery
    200A Handheld High-Voltage Switch Loop Resistance Tester with Rechargeable Battery
