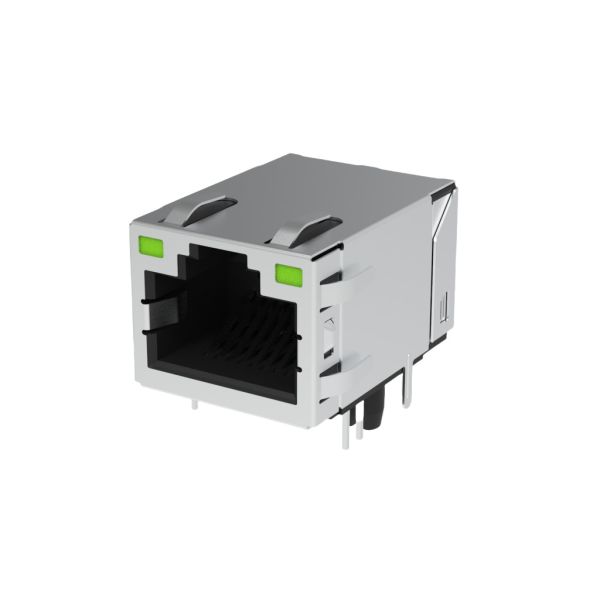

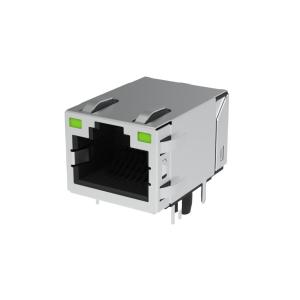

RJMG Series 1x1 1000 base-T RJ45 Magnetic Jack RJMG201K21120FR

Descriptions of Amphenol RJ45 Connector

The RJMG201K21120FR Modular Jack with Integrated Magnetics is fully RoHS compliant. Designed to meet IEEE802.3ab standards, this Magnetic Jack operates within a standard temperature range of 0°C to 70°C, and an extended range of -40°C to 85°C. Low mode conversion and improved EMI performance for reliable data transmission. With features like low mode conversion, improved EMI performance, and easy PCB assembly, it provides a comprehensive solution for networking applications requiring robust performance and ease of installation. It features Green-Green LED options and has shielded and EMI variants for enhanced protection against interference.

Specifications of RJMG201K21120FR RJ45 Jack With Magnetics

Materials of RJMG201K21120FR Single Port RJ45 Connector

Contact Material: Phosphor Bronze, plated with a minimum of 1.27μm (50u") Gold over Nickel on the mating area and 2.54μm (100u") Matte Tin over Nickel on the contact tails.

Housing Material: Liquid Crystal Polymer (LCP), a high-temperature thermoplastic material with a UL 94V-0 flammability rating.

Shield Material: Stainless Steel.

Plating (Contact Area): 1.27μm (50μin) Gold.

Housing Color: Black.

Contact Finish: Gold.

LEDs Material: Epoxy Lens, Tin Plated Steel Tails.

PCB Material: FR4 Fiberglass, Lead-Free.

LINK-PP is a professional designer and Manufacturer of magnetic telecom and networking components. Founded in Shenzhen in 1997 and began to develop Discrete Transformer. With over 26 years of experience in innovation and technology leadership. Our main products include RJ45 Connectors, LAN Transformers, and SFP Modules. We focus on improving product reliability and durability.

Main Production Lines

◆ 10/100/1000/10GBase-T LAN Isolation Transformer and Filter

◆ Rj45 Modular Jack With Integrated 10/100/1000/10G Magnetics
◆ Magnetic Rj45 Jack with POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ LAN Transformer With POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ T1/E1,T3/DS3/E3/STS-1 Interface LAN transformer
◆ ISDN,HDSL,ADSL and VDSL Transformer and splitter

◆ Optical Transceivers
