Electrochemical Cell flat corrosion cell

Glass electrolytic Cell, 4 ports

**Include salt bridge and gas inlet/outlet pipe

Suitable for corrosion test

Corrosion Cell, 5 ports

500mL

Includes all the electrodes

Suitable for corrosion test

The cell kit includes:

A specimen holder (1cm2 working area) * 1

Graphite rods *2

Pt plate electrode*2 (10*10*0.1mm)

Saturated calomel electrode *1

Salt bridge*1

F-shape gas inlet and outlet*1

Coating evaluation cell

(Paint test cell)

10mL

Working area is 1cm²

Flat corrosion cell

-Non-jacketed

working area is 1cm²

including:

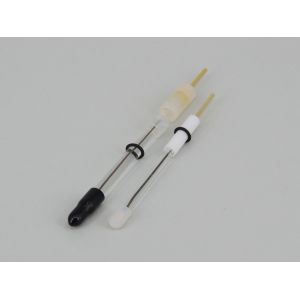

Ag/AgCl reference electrode

Counter electrode: Pt mesh*1 (20*20mm)

Flat corrosion cell

-Jacketed

Jacketed, water circulation for temperature control

working area is 1cm²

including:

Ag/AgCl reference electrode *1

counter electrode: Pt mesh *1 (20*20mm)

CS93

Electrolytic cell

(Non-sealed)

**Holes on the lid can be tailored. No include the electrodes shown in the pic.

Seal electrolytic cell

** Holes on the lid can be tailored. No include the electrodes shown in the pic.

H- cells

(Non-sealed)

Non-sealed

Volume:50~250mL (each cell,

PTFE caps. The two cells are separated by ion membrane which is prepared by user.

H- cells (sealed)

**Holes on the lid can be tailored. No include the electrodes shown in the pic.

Sealed

50~250 mL (each cell)

PTFE caps

The two cells are separated by ion membrane which is prepared by user.

CS931

Jacketed glass cell

(Non-sealed)

**Holes on the lid can be tailored. No include the electrodes shown in the pic

CS931S

Jacketed glass cell

(Sealed)

**Holes on the lid can be tailored. No include the electrodes shown in the pic.

Photoelectrochemical

cell(quartz)

**Holes on the lid can be tailored.

CS9331

Non-

sealed

Photoelectrochemical

cell

**Holes on the lid can be tailored. No include the electrodes shown in the pic.

For working electrode, you’re recommended to use L-shape electrodes, or the CS945 electrode clamp.

50ml 100ml 150ml

(Sealed photo)

*Glass cell, Teflon cap,

Quartz light window (dia. 24mm).

CS9331S

(Sealed)

CS9331S

HS

(Sealed)

Photoelectrochemical

H-Cells (Sealed)

Single cell volume:

50mL/100 mL

Glass cell, Teflon lid, Quartz window(dia. 24 mm), double light channels

The size and number of the holes for electrodes can be customized. The Nafion membrane and quartz window plate can be easily assembled and disassembled.

Spectroelectrochemical cell

(cuvette cell kit)

This kit includes:

Quartz cuvette 12.5*12.5*42mm,

Teflon cap,

Pt mesh(WE),

Pt wire counter electrode(CE), Ag/AgCl reference electrode(RE), Purge tube

optical path: 8*6.5*1mm

CS937

Glass cell + Teflon cap

Glass cell: 10ml

Diameter of the three holes:

φ6.35mm, φ6.35mm, φ6mm

Li-ion Battery test cell

Sealed, stainless steel cell

Suitable for Li-battery three

electrode test

Match CS930 glass cell

Base material: carbon steel.

Not included the cell and electrodes which are for demonstration

CS941

Base material: PTFE

provide 2 pieces cells (30ml)
