    Dual Band DJI Drone Wifi Extender 5-16V Power Supply 4W Output

    Ask Lasest Price
    Price : $72.00/pieces 2-99 pieces
    Brand Name : ACASOM
    Model Number : Gyroplane
    Payment Terms : T/T, Western Union
    Supply Ability : 3000
    Delivery Time : 3-5 worker days
    • Product Details
    • Company Profile

    Dual Band DJI Drone Wifi Extender 5-16V Power Supply 4W Output

    5-16V Power Supply 4W Output Dual Band DJI Drone Range Extender Signal Booster


    Product overview

    1.Descriptions

    5-16V Power Supply 4W Output Dual Band DJI Drone Range Extender Signal Booster

    This dual-band 4W output signal booster powered by 5-16V power supply is specially designed for DJI drones. It can significantly expand the control range and enhance the strength and stability of communication signals. The signal booster supports 2.4GHz and 5.8GHz frequency bands and is suitable for various flight missions and long-distance communication needs. It adopts a wide voltage power supply design (5-16V), which allows it to be flexibly adapted to various power supply systems and is very suitable for outdoor applications and long-distance flight operations of drones.

    2.Product Specifications

    Number

    Items

    Specifications

    1

    Frequency Range

    2.4-2.5GHz

    5.725-5.85GHz

    2

    Operating Voltage

    5-16V

    5-16V

    3

    ReceivingGain

    17dB±1

    15dB±1

    4

    Transmission Gain:

    18dB±1

    18dB±1

    5

    Max Output Power(P1dB)

    36dBm(4W)

    36dBm(4W)

    6

    Input Trigger Power

    Min:3dBm Max:20dBm

    Min:3dBm Max:20dBm

    7

    EVM

    3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz

    3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz

    8

    Noise Figure

    <2.5dB

    <2.5dB

    9

    Current Supply

    580mA@Pout 28dBm 12V

    580mA@Pout 28dBm 12V

    10

    LED Indicator

    Transmitter: Green; Receiver: red

    11

    Power Socket

    2.5*0.7mm

    12

    Shell Size

    65*62*12mm

    13

    Net Weight

    0.1Kg

    3.Product Advantages

    • Wide voltage power supply (5-16V) The signal booster supports a voltage input range of 5V to 16V, providing greater power supply flexibility and being able to adapt to different power supply configurations, making it easy to integrate in various application scenarios.
    • High power output (4W) The amplifier has an output power of 4W, which can significantly improve signal coverage and transmission strength, ensuring that the drone can maintain stable control and communication when flying over long distances.
    • Dual-band support (2.4GHz & 5.8GHz) Supports both 2.4GHz and 5.8GHz frequency bands, which improves the flexibility and stability of DJI drone communication, adapts to different environments and needs, reduces signal interference, and enhances flight safety.
    • Long-distance control and signal enhancement This device can greatly expand the control range of the drone and ensure stable signal transmission even at long distances or in complex terrain. It is an ideal tool for long-distance flights and high-altitude shooting.
    • Rugged and durable, suitable for outdoor use. The signal booster adopts a rugged design and has excellent weather resistance and anti-interference capabilities. It is suitable for the harsh requirements of outdoor environments and ensures that the drone can successfully complete its mission in various weather conditions.

    4.Product details

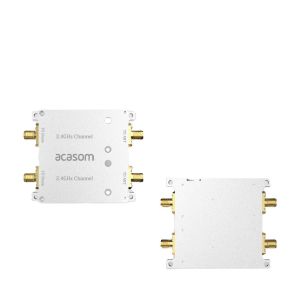

    ACASOM 2.4GHz&5.8GHz 4W Signal Booster/ Extender

    Working Band: 2.4-2.5GHz&5.725-5.85GHz

    Output Power: 4W(36dBm)

    2.4GHz&5.8GHz 4W dualband amplifier/booster/extender can be applied for DJI Mavic 3 Classic Mavic 3 Mavic2 Mini3 Phantom4, Autel EVO2, skydio, Parrot and other drone, to make the flight range more than 10km.
