11.1V 8AH Lithium Ion Battery Pack 18650 3S4P For Sweeping Robots

    Buy cheap 11.1V 8AH Lithium Ion Battery Pack 18650 3S4P For Sweeping Robots from wholesalers

    Buy cheap 11.1V 8AH Lithium Ion Battery Pack 18650 3S4P For Sweeping Robots from wholesalers
    • Buy cheap 11.1V 8AH Lithium Ion Battery Pack 18650 3S4P For Sweeping Robots from wholesalers
    • Buy cheap 11.1V 8AH Lithium Ion Battery Pack 18650 3S4P For Sweeping Robots from wholesalers
    • Buy cheap 11.1V 8AH Lithium Ion Battery Pack 18650 3S4P For Sweeping Robots from wholesalers

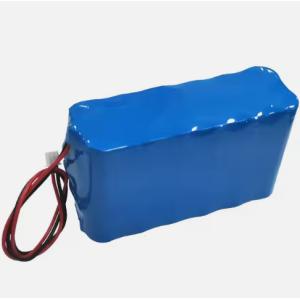

    11.1V 8AH Lithium Ion Battery Pack 18650 3S4P For Sweeping Robots

    Ask Lasest Price
    Brand Name : TINKO/OEM
    Model Number : TK18650 3S4P
    Certification : CE/ROHS/MSDS/UN38.3
    Price : Negotiable
    Supply Ability : 100pcs/day
    • Product Details
    • Company Profile

    11.1V 8AH Lithium Ion Battery Pack 18650 3S4P For Sweeping Robots

    High Density Rechargeable Lithium-ion 18650 Battery Pack 11.1V 8AH for Smart Light


    Battery Description

    This lithium ion battery pack is made up by 12pcs of 2000mah 18650 battery cell, with the pack way 3S4P makes it's voltage up to 11V and high capacity to 8000mah. It very suitable for the 12V sweeping robot or other smart robot.
    TINKO lithium-ion batteries are widely used due to their advantageous features. They have a high energy-to-weight ratio, so they can store more energy in a smaller, lighter package compares to other. They also can work hundreds to thousands of charge and discharge cycles, making them durable for long-term use. Their low self-discharge allowed them to retain charge for extended periods when not in use. With these features the lithium battery used in a variety of applications, from consumer electronics (smartphones, laptops, alarm devices, monitor devices ect.) to electric vehicles. Their voltage and capacity also can be designed through different usage.



    Battery Parameters


    NO.


    ItemSpecifications
    1

    Typical Capacity


    8000mAh @ 0.2C Discharge

    Minimum capacity


    7920mAh @ 0.2C Discharge
    2

    Nominal voltage


    11.1V
    3

    Standard Charge


    CC/CV,0.2C5A, 12.60V
    4

    Standard Discharge


    CC,0.2C5A, 9.00V
    5

    End-of-charge Voltage


    12.60V±0.1V
    6

    End-of-charge Current


    0.02C5A (At CV mode)
    7

    End-of-discharge Voltage


    9.00 V
    8

    Charging Time


    8.0hours(standard charge)
    9Quick Charge Current

    8000mA (1.0C5rate)


    10Quick Discharge Current

    16000mA (2.0C5rate)


    11Max Discharge Current

    24000mA (3.0C5rate)


    12

    Initial Impedance


    Max:230mΩ
    13

    Weight


    Approx:540±5g
    14

    Operating temperature


    Charging: 0℃~45℃

    Discharging:-20℃~60℃

    15

    Storage temperature


    -5℃~35℃
    16

    Storage Humidity


    ≤75% RH
    17

    Appearance


    Without scratch, distortion, contamination and leakage
    18

    Standard environmental condition


    Temperature: 25±5℃

    Humidity: 45-75%RH

    Atmospheric Pressure: 86-106 KPA

    19

    Temperature Dependence of Discharge Capacity

    @ 0.2C Discharge



    Charge temperature


    Discharge temperature
    25℃

    -10℃


    0℃


    15℃


    25℃


    40℃



    Relative Capacity


    50%80%90%100%80%

    Product Drawing





    Product Applications
