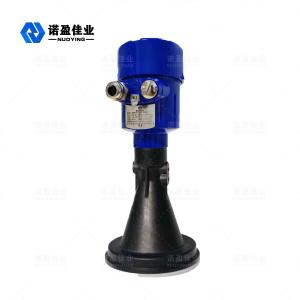

    26GHz NYRD-810 High Frequency Meter Wave Radar Solid Level Sensor Guided Radar Acid Level Transmitter

    Ask Lasest Price
    Brand Name : NUOYING
    Model Number : NYRD-810
    Certification : IP67
    Price : $209~520/pcs
    Payment Terms : T/T
    Supply Ability : 1000pcs per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    26GHz NYRD-810 High Frequency Meter Wave Radar Solid Level Sensor Guided Radar Acid Level Transmitter

    26GHz NYRD-810 High Frequency Meter Wave Radar Solid Level Sensor Guided Radar Acid Level Transmitter

    NYRD-810 Product Overview

    Products Description
    Radar level meter NYRD80X series sensor is a 26GHz high-frequency radar level measuring instrument with a maximum measuring distance of 80m. The antenna is further optimized, and the new fast microprocessor can carry out higher rate signal analysis and processing, making the instrument can be used in reaction kettle, solid bin and some complex measurement conditions.

    26GHz NYRD810 Radar Level Meter Working Principle

    The radar object position antenna emits a narrow microwave pulse that is transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).
    The datum of measurement: Spiral bottom surface or sealing surface of flange.
    When using radar level timing, make sure that the highest material level cannot enter the measurement blind area.
    Product Parameters
    Typical application
    Strong dust, large solid
    Antenna material
    PTFE
    Measuring range
    20m
    Process connection
    Thread, flange (optional)
    Process temperature
    -40~+130℃
    Process pressure
    -0.1~0.3MPa
    Power supply
    24VDC
    Accuracy
    <0.1%F.S
    Protection level
    IP67

    Dimensions of the shell structure of the radar level meter (unit: mm)

    There are two types of radar level meter:
    One is the cast aluminum shell and the other is a stainless steel case.Customized design can be made according
    to customer requirement and site condition.
    Product details
    Product feature
    Various application
    Cooperation customers
    Product certificate
