    Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m

    Ask Lasest Price
    Brand Name : NUOYING
    Model Number : NYRD900
    Certification : CE, ATEX, SIL
    Price : $160~$580/pc
    Payment Terms : T/T
    Supply Ability : 1000 pcs per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m


    Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m


    80GHz Radar Level Transmitter Design Features


    1.Good transient performance: Based on the self-developed CMOS millimeter-wave RF chip, to achieve a more compact RF structure, higher noise-signal ratio.

    2.The 5GHz working bandwidth makes the product have a higher measurement resolution ratio and measurement accuracy

    3.Coherence: a coherent current-driven dipole shock generation or a nonlinear differential frequency effect of a coherent laser pulse generation

    4.Low energy: millimeter wave photon energy has only a few millielectron volt, there will be no X-ray ionization and destruction of the substance to be detected, so it is not easy to destroy the substance to be detected

    5.Strong penetration: Strong penetration for non-polar substances. Many nonmetallic nonpolar materials absorb less rays in this band and, therefore, can be used to probe the internal structure of the material. For example, ceramics / cardboard / plastic products / foam are transparent to this band of electromagnetic radiation, and can also be used for airport / station safety monitoring, such as exploring machinery / explosives and drugs, or for circuit board welding detection.


    80GHz Radar Level Transmitter Technical Parameters


    Product ModelNYRD900
    Transmission frequency76Hz-81Hz, FM scanning frequency width 5GHz
    Antenna formLens antenna, antiseptic lens antenna
    Antenna materialPTFE, 304+PTFE
    Measuring range0.08-150m
    Measuring accuracy0.05%-0.1% F.S
    Power supply24VDC, 220VAC
    Signal output4...20mA/HART/RS485/Modbus...
    Process temperature-40~+130℃,-40~+260℃ (≥260℃ can be customized)
    Process pressure-0.1~2.0MPa
    Process connectionThread, flange
    Protection ClassIP67, IP68 (optional)
    Explosion-proof gradeExia II CT6 Ga, Exd II CT6 Gb

    Note: Products can be customized according to the specific requirements of users.

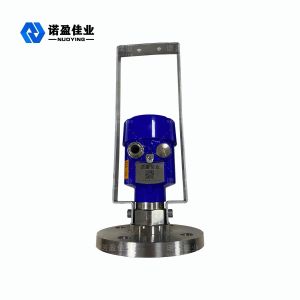

    80GHz Radar Level Transmitter Pictures



    Quality Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m for sale
