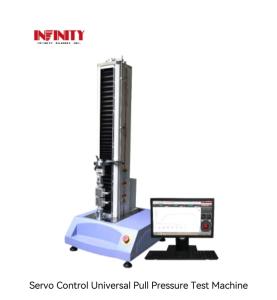

50KN Servo Control Universal Testing Machine, 20KN Tensile Test
Machine, 10KN Compression Test Machine
Model:U9010
Application:
Servo Control Tensile Testing Machine) are applies to all kinds of metal, non-metallic materials subjected to
tensile, compression, bending, shear, tearing, peel, puncture and
other mechanical properties, you can also carry out constant
velocity loaded, constant velocity displacement, automatic control,
and low-cycle Loadings cycle, deformation circulation, displacement
function of loop. To strike elongation, tensile strength, flexural
modulus, modulus of elasticity, yield strength, the net energy,
fold back energy, the total energy and other indicators.
Standard:
Tension testing machine is manufactured according to the standards
including GB / T 16491 - 2008, GB2611 - 2007, JB6146 - 2007,
JJF1246 - 2010.
To meet GB / T228-2002, GB / T14452 - 93 standard testing
requirements.
To meet ASTM D638 - 03, ASTM D790 - 07 standard testing
requirements.
To meet GB/T2792, ASTM D3330-04 Standard Test Method for Peel
Adhesion of Pressure-Sensitive Tape (Test Method A—Single - Coated
Tapes at 180° Angle), ASTM D1894 - 06 Standard Test Method for
Static and Kinetic Coefficients of Friction of Plastic Film and
Sheeting(Single Coated Tapes at 90° Angle) standard testing
requirements.
Features:
High accuracy:
Adopt AC servo motor to driving the high precise Taiwan ABBA ball
screw working, with high precise America TRANSCELL explosion-proof
load cell, load accuracy reached to ±0.25% & displacement accuracy
reach to 0.001mm.
High performance:
Automatic broken identification, automatically return, point
collected by hand, multi-units switching, English and Chinese
languages can be choice. And also have many kinds of analysis
curve: stress vs strain curve, load vs flexure curve, strength vs
deformation curve, strength vs time curve, time vs flexure curve.
Specification:
| Model | IF2001A |
| Capacity (optional) | 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN, 30KN, 50KN
(Customized) |
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa,Lbf / In2, Kgf / MM2 |
| Power system | Japan Panasonic serve motor Italy Motovaria gearbox Japan Mitsubishi synchronous belts Taiwan ABBA ball screw |
| Load resolution | 1 / 500,000 |
| Load accuracy | ± 0.25 % |
| Load range | rangless |
| Stroke (exclude the grips) | 800mm,1000mm (optional) |
| Effective width | 400mm, 500mm (optional) |
| Test speed | 0.001 ~ 500mm / min |
| Speed accuracy | ± 0.5 % |
| Stroke resolution | 0.001mm |
| Software | Profession software |
| Motor | AC servo Motor |
| Main unit dimension | W830xD670xH1940mm |
| Main unit weight | 345Kg |
| Power supply | AC220V 5A or specified by user |
