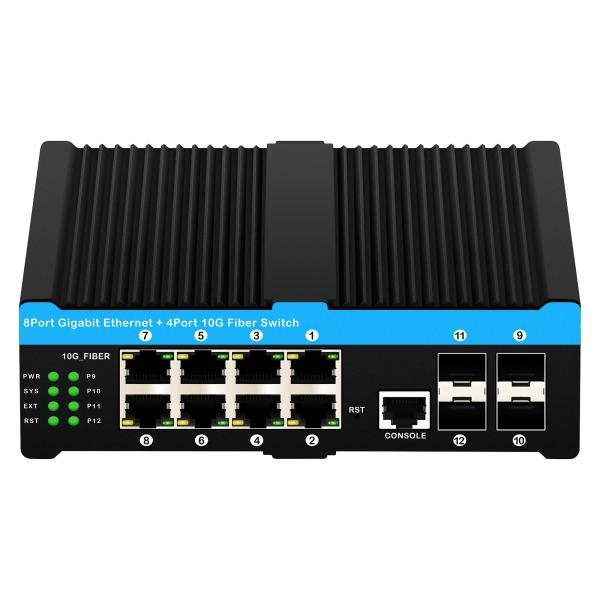

10G Industrial poe switch 8*Gigabit poe port with
4*10G SFP uplink L2 managed PoE Switch Network switch
Key Features of 10G managed poe switch
- 8x 10/100/1000Base-T RJ-45 and 4x 10GBase-FX SFP Fiber, one console
port
- Support IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
- 6 KV Ethernet surge protection, adapt to a harsh outdoor
environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard,
half-duplex with Back pressure standard
- A store-and-forward switching mechanism
- Operating environment temperature:-40 ° ~75 ° c
- Cable diagnostic, Measuring cable normal or broken point distance
- Redundant input power 48VDC (48~52VDC) and Support reverse polarity
- STP, RSTP, MSTP, ITU-T G.8032/Y1344 Ethernet Ring Protection
Switching (ERPS) for redundant cabling
- Support SNMPv1, v2, v3, Web management, support user login password
protection and other device configuration methods
Specification of 10G Ethernet Switch
Product Name | 10G Managed Industrial POE Fiber Switch (4F+8TP) |
Model No. | IM-FP4X88GW |
Port | 4x 10GBase-FX SFP+ Fiber SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
Switch Architecture | System bandwidth:176Gbps (non-traffic jam) DRAM size: 4GB Switching delay: <10us Packet buffer :12Mbit Throughput: 95.23Mpps Jumbo frame :12KB MAC function :12K L2 |
Extended functionality(optional) | BYPASS optical bypass protection function |
Power Consumption | 8W(no-load) 18W (Full-load) |
8W(no-load) 18W (Full-load) | Redundant DC48V (48~52VDC) power (Removable Terminal Block ) |
LED | Per unit: Power 1 (Red), SYS (Red), RJ-45 port: Link/Active (Green) Speed(Yellow) SFP Fiber port: Link/Active (Green) Extension indicator |
Operating Temperature | -40 ~ 75°C |
| Warranty | 3 years |
Management Interface
Application
Packing List:
- Put the product in an ESD Bag, then placed in PE foams with outer
carton packaging.
- The standard packing usually contains a main device, a warranty
card and a user manual.
- Packing box dimension for 1pc: 23*16.5*5.8cm
- 20pcs in a packing box of 55.5*40*41cm dimension.
FAQ:
1. What is the power input?
A: For non-PoE managed switches, it receives DC12V~52V, for PoE
managed switches, it receives DC48V~52V.
All the models support redundant input.
2. How can I install the device?
A: Each model in this series supports DIN35/Wall mounting.
It requires necessary accessories in installation like screws,
mounting kit etc., some of them are included in the packing box,
some are not.
3. Is it possible to print my logo?
A: Yes, it is usually on the top panel of the device.
4. Can you supply a customized PVC label with my model on it?
A: Yes, there is a description, model name, and logo on the front
PVC mask, all is available for customization.
5. What is the packing list?
A: There is a device, protective foam, a user manual, a warranty
card and a console cable in the box.
But SFP modules and power supply are NOT included, please purchase
it from us separately.
