Product Overview

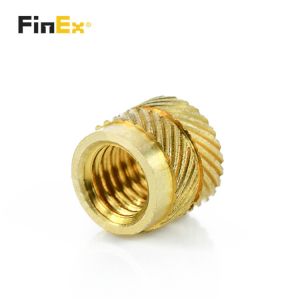

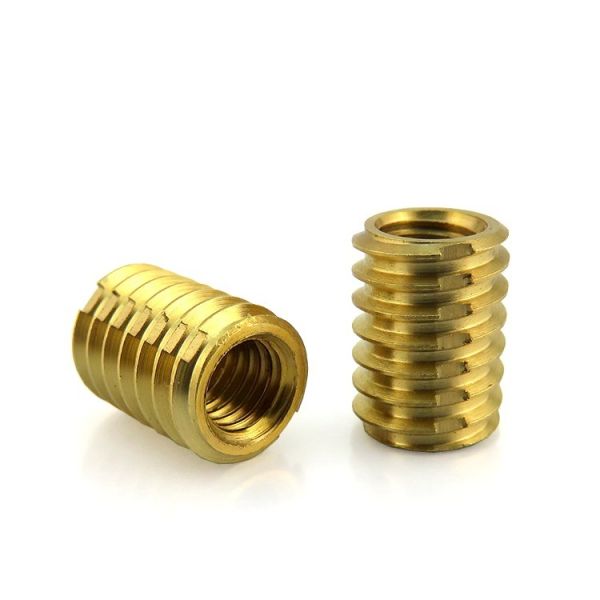

Transform your plastic furniture assembly with our Customizable Blind Threaded Self-Locking Inserts, engineered to create permanent, high-strength threads in plastic
materials. Designed for one-sided installation, these inserts
feature a self-locking mechanism to prevent loosening under
vibration, ensuring reliable performance in modular furniture,
outdoor settings, and industrial applications. Crafted from
corrosion-resistant materials and fully customizable, they provide
a reusable, stripped-proof solution for demanding environments.
Key Features
✅ Self-Locking Design
Integrated locking ribs or knurled exterior grip the plastic
material securely, resisting rotation and pull-out even under
dynamic loads.
✅ Blind Installation
Install from one side without backside access—ideal for hollow or
capped plastic furniture components.
✅ Corrosion-Resistant Materials
Choose from brass, stainless steel, or nylon inserts to match
environmental needs (indoor, outdoor, marine).
✅ Customizable Specifications
Tailor inserts to your project:
- Thread Size: M4–M12 (metric) or UNC/UNF imperial.
- Length: 8mm–40mm (custom lengths up to 60mm).
- Head Style: Flush, countersunk, or flanged.
✅ Easy Installation
Heat-setting (for thermoplastics) or press-fit installation with
standard tools—no adhesives required.
✅ ROHS & REACH Compliance
Safe for consumer products and compliant with global environmental
standards.
Technical Specifications
- Material: Brass (C36000), Stainless Steel (304/316), or Glass-Filled Nylon
- Thread Standards: ISO, DIN, ANSI (Custom Threads Available)
- Installation Method: Heat-Set (Plastic), Press-Fit, or Ultrasonic
- Temperature Resistance:
- Brass/Stainless Steel: -40°F to 600°F (-40°C to 316°C)
- Nylon: -40°F to 250°F (-40°C to 121°C)
- Torque Capacity: Up to 15 Nm (Material-Dependent)
- Certifications: ROHS, ISO 9001, ASTM D4101
