    Triple Convoluted Bellows Type Air Shocks Firestone W01-M58-6971 Bolts Height 45 MM

    Ask Lasest Price
    Brand Name : AIRSUSTECH Air Springs
    Model Number : 3H6971
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Triple Convoluted Bellows Type Air Shocks Firestone W01-M58-6971 Bolts Height 45 MM

    Firestone W01-M58-6971 Rubber Air Springs Triple Convoluted Bellows Type Air Shocks


    Product Description:

    Expertly designed to provide superior performance and versatility for a wide range of applications. At the heart of its robust construction is a crimped assembly that ensures enhanced strength and durability. This is complemented by a convoluted bellow, meticulously crafted from Natural Rubber. This material is renowned for its exceptional dynamic capabilities and excellent universal properties, making our actuator not only powerful but also adaptable to a variety of operating conditions.


    Specifications and Technical Parameters:


    3H6971 Specifications:

    Bolts TypeM-10×1.5
    Number of Bolts40
    Distance Betweeen Bolts830 mm
    Top Cover Plate Diameter890 mm
    Bottom Cover Plate Diameter890 mm
    Bellow MAX. Diameter at 7 Bar950 mm
    Minimum Height140 mm
    Maximum Height584 mm

    3H6971 Technical Parameters:

    Dynamic Characteristics at 380 mm Design Height

    (Required for Airmount isolator design only)

    Gauge

    Pressure (BAR)

    Load (kN)

    Spring Rate

    (kN/m)

    Natural Frequency (Hz)
    3150.168531.19
    4204.9511101.16
    5258.6713581.14
    6317.6616141.12
    7371.4718391.11

    Cross References:


    There are several other models of the product with model 348-3:


    DescriptionAssembly Order No.
    Style 348-3

    Hight Strength Construction

    Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers

    W01-M58-6971, W01M586971

    WO1-M58-6971, WO1 M58 6971

    WO1M586971, W01 M58 6971

    Rubber Bellows only

    W01-358-1023, W01 358 1023

    W013581023, WO1-358-1023

    WO1 358 1023, WO13581023

    Style 348-3

    High Strenght Bellows

    Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers

    W01-358-9603, W01 358 9603

    W01358 9603, WO1-358-9603

    WO1 358 9603, WO13589603

    Rubber bellows only

    W01-358-1023, W01 358 1023

    W013581023, WO1-358-1023

    WO1 358 1023, WO13581023


    Support and Services:


    AIRSUSTECH Air Bags Product Technical Support:

    • Provides additional support for your vehicle's suspension system
    • Helps to reduce vehicle sagging, sway, and bottoming out
    • Easy to install and inflate/deflate as needed
    • Constructed with high-quality materials for durability and longevity
    • Available in a variety of sizes to fit most vehicles


    AIRSUSTECH Air Bags Product Services:

    • Professional installation available through authorized dealers
    • Warranty included with product purchase
    • Online resources available for product information and troubleshooting
    • Customer service available for any questions or concerns

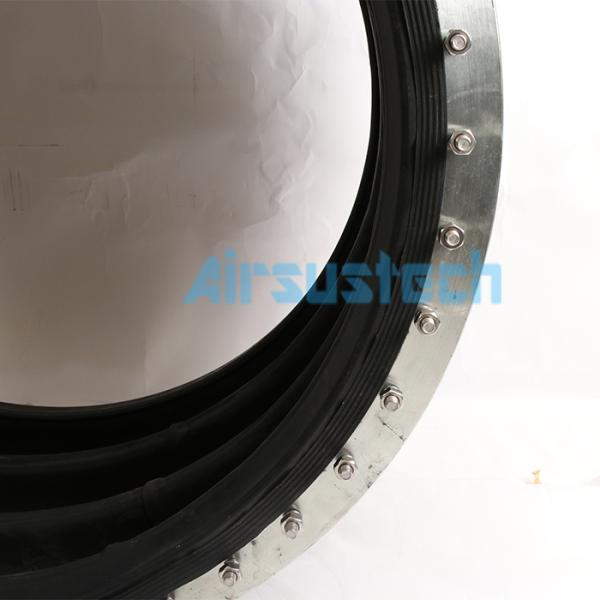

    The Real Photos of 3H6971:
