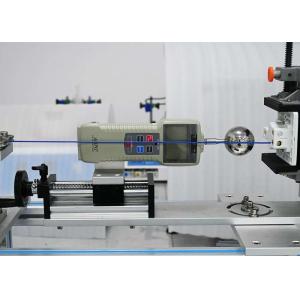

IEC 60884-1 Figure 15 Connections Of Conductors Pull Force Test Apparatus For Socket Test

IEC 60884-1 Figure 15 Connections Of Conductors Pull Force Test Apparatus For Socket Test

Product Information:

This test apparatus conforms to IEC 60884-1:2022 clause 13.4 figure 15. It is used to detect the socket structure of the screwless terminal during or after the socket is installed on the installation box or wall, the connection and/or disconnection device of the screwless terminal cannot be triggered by the conductor, and the safety performance of its structure is verified.

Test principle: Use the push rod connection test tool 1 (Ф50 steel ball) to apply a 120N push force to the connection and/or disconnection device. After the force value is reached, set a release weight to apply a 30N pull force to the conductor, and take it off after 1 minute of the test time.

Technical Parameters:
