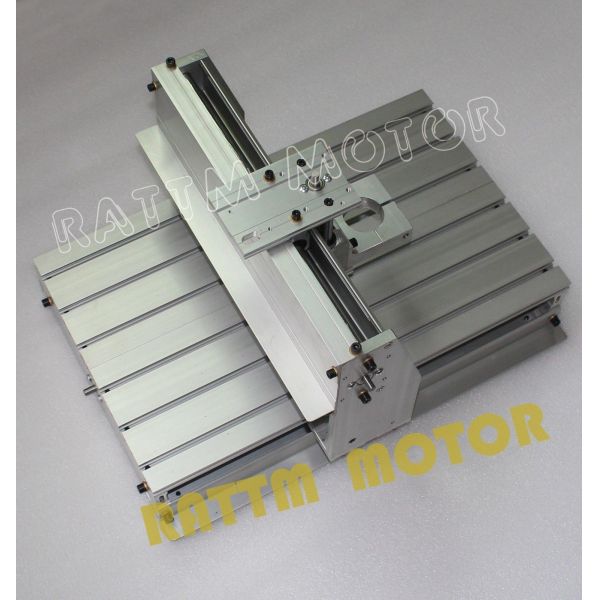

Technical Parameters
1) Machine Dimensions: 540×410×320mm5 (not including the coupling
and motor)
2) Table size: 525x320mm,Groove width: 7.5mm
3) Rack material:6061-T5,high strength, through the CNC machining
center
precision machining, all of the surface after anodic oxidation
treatment.
4) 3Axis effective stroke:X290mm, Y390mm, X60mm
5) Z-axis Stroke:55mm,Engraving depth depends on the length of the
tool edge
6) Max workpiece thickness:≤70mm
7) Rail type: Chromeplate shaft+Linear Bearings(Surface hardening
61HRC)
8) Transmission unit:X axis diameter 16mm chrome plated linear
guide,
TBI1204 ball screw;Y axis diameter 16mm chrome plated linear guide,
TBI1204 ball screw;Z axis diameter 12mm chrome plated linear guide,
TBI1204 ball screw;
9) Repeat positioning Accuracy: 0.05mm
10) Net weight: 17.5kg
Feature:
1) Simple operation and installation.
2) More steady and strong equiped with aluminum alloy frame
materials.
3) X Y and Z axis carving make more precise and and
three-dimensional effect.
4) Can control the engraving more precise
5) Engrave almost anything on almost any surface
6) Cover plates reducing pollution for the screws and shafts.
7) The reinforced and thickened machine body make transportation
absolutely to be safer and longer life time.
8) The chrome shafts is not easy to deform,suitable for long time
use.
9) Flexible coupling can be used for high torque transmission.
10) This item already be equiped NEW 1204 ball screws.
Anti-blackflash,high precision,long life circle.
Main application:
Engrave
for Wood, bamboo, normal PCB, PVC, PMMA, plastic, duotone
board(ABS)and
etc nonmetal, also can engrave on gold, silver, copper, aluminium,
Pb
etc soft metal surface working, but not milling working.
