    1.25Gbps CWDM SFP Optical Transceiver 1270-1610nm 40km/80km/120km Reach


    Description

    The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 40km transmission distance with SMF.
    The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
    The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

    Features


    • Dual data-rate of 1.25Gbps operation

    • 18 CWDM DFB wavelengths laser and PIN photodetector for 40km/80km/120km transmission

    • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

    • Digital Diagnostic Monitoring:

    • Internal Calibration or External Calibration

    • Compatible with SONET OC-24-LR-1

    • Compatible with RoHS

    • +3.3V single power supply

    • Operating case temperature range: 0 °C to +70 °C

    Applications


    Gigabit Ethernet.

    Fiber Channel.

    Switch to Switch interface.

    Switched backplane applications.

    Router/Server interface.

    Other optical transmission systems.

    Absolute Maximum Ratings

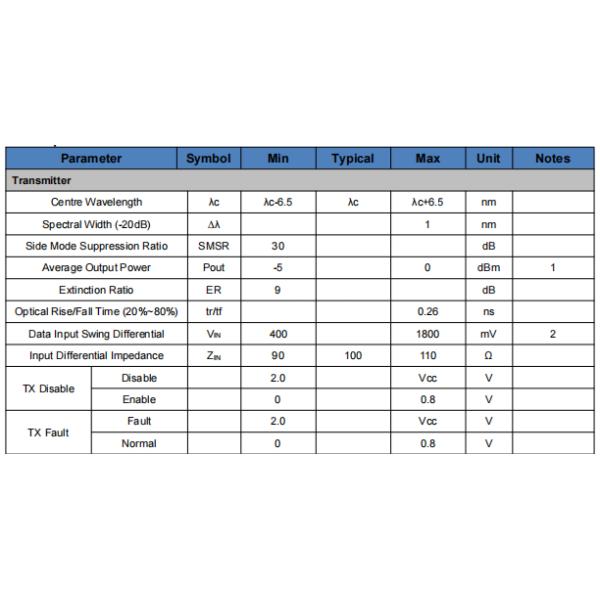

    Optical and Electrical Characteristics

    Mechanical Dimensions
