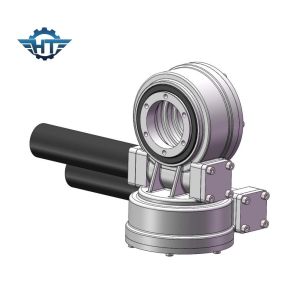

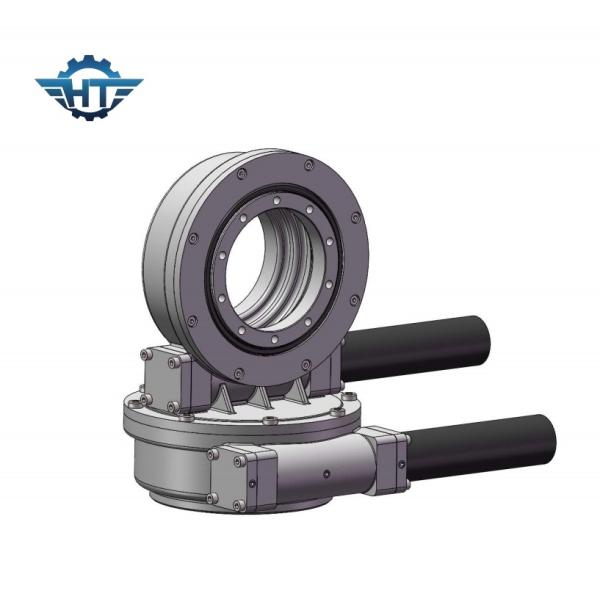

Product Description:
With a speed range from low to high, this dual axis slew drive can
operate at different speeds depending on the application
requirement. SDE5 dual axis slewing drive has a tilting moment
torque of 6000 Nm, which allows it to handle less than 20 square
meters without compromising performance. The maximum holding torque
is 9200 Nm, making it one of the robust dual axis slew drives in
the market.
The dual axis slew drive has an efficiency of 40%, which means that
it can transfer up to 40% of the input power to the output. This
high level of efficiency ensures that the drive consumes less
power, resulting in reduced operational costs and energy savings.
The hydraulic slew drive is designed with a compact and robust
structure, making it easy to install and maintain. It is also
suitable for both horizontal and vertical installations, providing
maximum flexibility for different applications.
The Dual Axis Slew Drive is a reliable and high-performance
solution that can meet the requirements of various industrial and
commercial applications. Its ability to handle heavy loads, operate
at different speeds, and deliver high efficiency makes it an ideal
choice for customers looking for a durable and cost-effective
two-axis turntable.
Parameters of SDE Slewing Drives:
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Features:
- Product Name: SDE5 Dual Axis Slew Drive
- Holding Torque: 9200 Nm
- Shipping: By Air, Train, Sea, Express
- Speed Range: 0~1 rpm
- Pitch Circle: 100 mm
- Self-Locking: Yes
The SDE5 Dual Axis Slew Drive is an Enclosed Slewing Drive that
features a maximum holding torque of up to 9200 Nm. It has a speed
range from 0~1 rpm and pitch circle 100mm. This product is
self-locking and can be shipped by air, train, sea, or express.
Applications:
The HT Dual Axis Slew Drive is a self-locking gear that provides a
high level of efficiency, up to 40%. This feature ensures that the
product can operate smoothly without any slippage, even in harsh
environments. The product is designed to provide a high level of
precision and accuracy, making it an ideal choice for applications
that require precise positioning.
The HT Dual Axis Slew Drive has a tilting moment torque of 5800 Nm
and a rated output torque of 2000 Nm. This makes it a powerful
product that can handle heavy loads with ease. Additionally, the
product is easy to install and maintain, making it a popular choice
among users.
The HT Dual Axis Slew Drive is suitable for use in both electric
and hydraulic systems, making it a versatile product. It can be
used in a wide range of applications, including solar trackers,
wind turbines, and satellite dishes. The product is designed to
withstand extreme weather conditions, making it ideal for use in
harsh environments.
In summary, the HT Dual Axis Slew Drive is a high-quality product
that is designed to provide a unique solution for 2-axis turntable
applications. Its self-locking gear and high-efficiency make it an
ideal choice for applications that require precision and accuracy.
Its powerful torque and ease of installation make it a popular
choice among users. It is suitable for use in both electric and
hydraulic systems and can be used in a wide range of applications,
including solar trackers, wind turbines, and satellite dishes.
