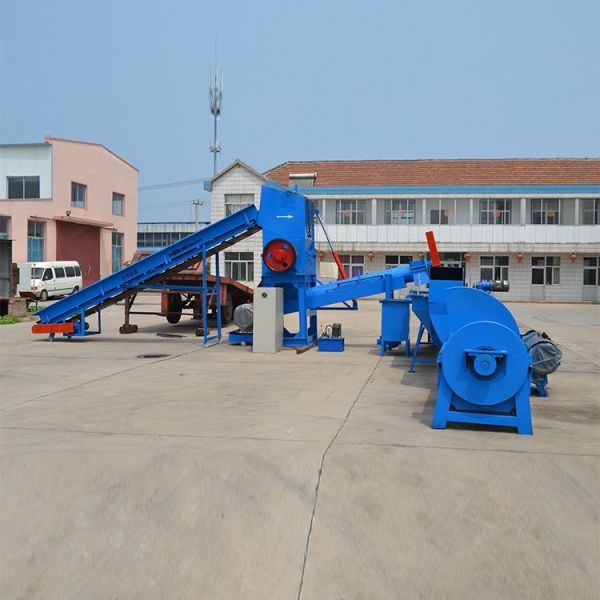

Waste Plastic Crusher Recycling Manufacturer Plastic Shredder Line
Configuration of waste plastic recycling production line:
1. Feeding system: conveyor belt, which transports waste plastic
bottles from the collection point to the subsequent processing
equipment.
2. Label remover: removes labels on plastic bottles, usually using
water jets, high-temperature steam and other methods.
3. Cleaning system: rinse tank, removes dirt and residues on the
surface of plastic bottles to ensure cleanliness.
4. Crushing system: single-shaft crusher, double-shaft crusher or
plastic crusher, crushes the cleaned plastic bottles into small
pieces for subsequent processing.
5. Screening system: vibrating screen, screens the crushed plastic
and separates particles of different specifications.
6. Sorting system: air separator / magnetic separator, separates
metal impurities and other plastics of different materials to
ensure the purity of the material.
7. Cleaning system (second time): water washing tank, cleans the
screened plastic particles again to remove residual impurities.
8. Drying system: dryer, dries the cleaned plastic particles to
prepare for subsequent melt granulation or packaging process.
Advantages:
1. Use advanced cleaning and sorting technology to ensure the
purity and quality of recycled plastics to meet market demand.
2. Integrate multiple processing links to reduce time and resource
consumption in the production process. Recycle and process waste
plastic bottles locally, reducing the cost of transportation to
external processing plants.
3. Convert waste plastic bottles into recycled plastic particles,
reduce the demand for raw materials, promote the recycling of
resources, reduce the pollution of waste plastic bottles to the
environment, reduce the demand for landfill and incineration, and
protect the ecological environment.
4. Modern control system of the waste plastic recycling production
line can realize automated operation, improve production efficiency
and reduce labor costs.
5. The waste plastic recycling production line can be adjusted and
expanded according to different production needs to adapt to
various types of plastic recycling.
Plastic recycling machine attributes:
Input Material Type | Can process various plastic packaging waste, such as plastic
bottles, films, containers, plastic bags, etc. |
Shredding Capability | Powerful shredding crusher capability to crush plastic products
into 1-10 mm particles. |
Washing Function | Automatic washing function to remove oil stains, labels and other
impurities from the plastic surface. |
Dewatering Effect | Equipped with an efficient spin-drying mechanism to quickly dewater
the washed plastic particles to a moisture content below 2%. |
Production Capacity | Processing capacity generally ranges from 500-3000 kg/hour, can be
selected according to actual needs. |
Energy Consumption | Adopts energy-efficient and environmentally friendly design, with
power consumption less than 2 kWh/ton and water consumption less
than 1.5 tons/ton. |
Automation Level | The equipment has a fully automatic operation mode, without the
need for manual intervention, to achieve continuous production. |
Safety | The equipment is equipped with comprehensive safety protection
devices to ensure the safe and reliable operation of the process. |
