    Firestone W01-R58-4057 Industiral Air Shock Absorbers Stroke Height 85MM Air Bags

    Ask Lasest Price
    Brand Name : AIRSUSTECH Air Springs
    Model Number : 1B10×1T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Firestone W01-R58-4057 Industiral Air Shock Absorbers Stroke Height 85MM Air Bags

    Firestone W01-R58-4057 Industiral Air Shock Absorbers Stroke Height 85MM Air Bags


    Product Description:

    The AIRSUSTECH Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.


    1B10×1T Specifications:


    Air Fitting1/2 BSPBottom Cover Plate Diameter210 mm
    OperationGas-filledMinimum Height50 mm
    Screw Type4 pcs×M10Maximum Height135 mm
    Distance Air Hole Betweeen Screw90.5 mmDesign Height95 mm
    Screw Center Distance181 mmInstallation Diameter295 mm
    Screw Height25 mmBellow MAX. Diameter280 mm
    Top Cover Plate Diameter210 mmPressure Ability3-8 bar

    Cross References:


    Firestone

    W01-R58-4057, W01 R58 4057, W01R584057

    WO1-R58-4057, WO1 R58 4057, WO1R584057

    Contitech

    FS 210-10 DS, FS 210 10 DS, FS21010DS, FS 210-10DS

    FS 21010DS, FS 210 10DS, FS210-10 DS, FS210 10 DS

    Dunlop Pneuride10''×1
    Dunlop SpringrideSP2523, SP 2523
    NorgrenM/31101
    Parker9109024

    Applications:


    AIRSUSTECH air actuators can be used in nearly all branches of industry, such as:


    • vehicle applications
    • automation technology
    • conveyor systems
    • agricultural machinery
    • food industry
    • paper and textile equipment
    • pantograph drives
    • sawmill machinery
    • punch and forming presses

    Support and Services:


    From Original Equipment Manufacturers (OEM) to aftermarket applications, Enidine offers a unique combination of product selection, engineering excellence and technical support to meet even the toughest application needs.
    Global Manufacturing and Sales Facilities offer our customers:


    • Highly Trained Distribution Network
    • State-of-the Art Engineering Capabilities
    • Custom Solution Development
    • Customer Service Specialists
    • Multiple Open Communication Channels

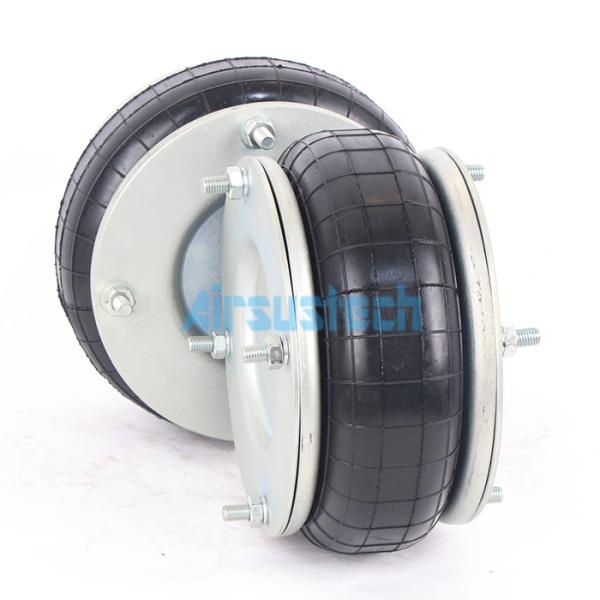

    The Real Photos of 1B10×1T:
